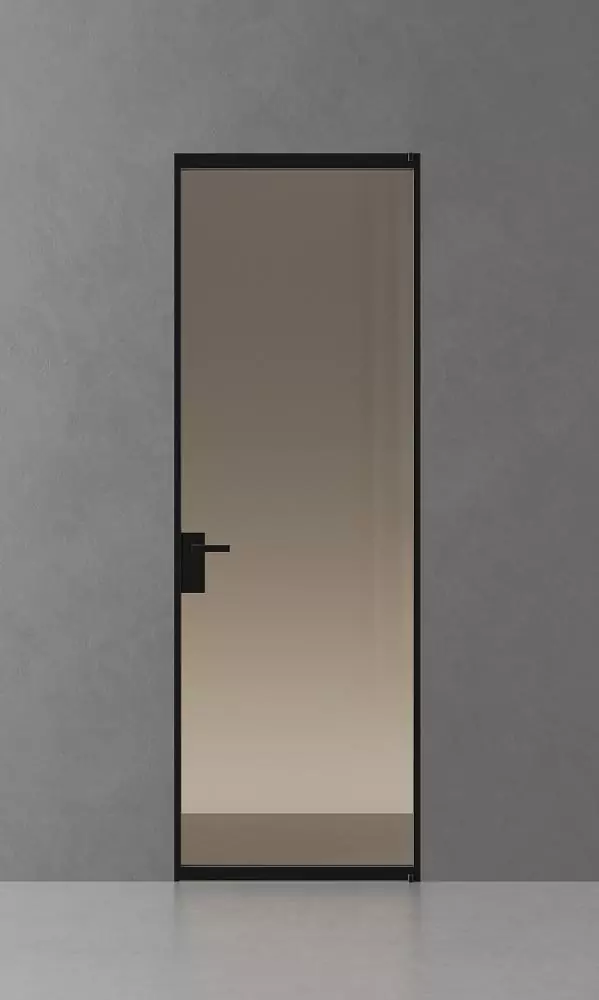

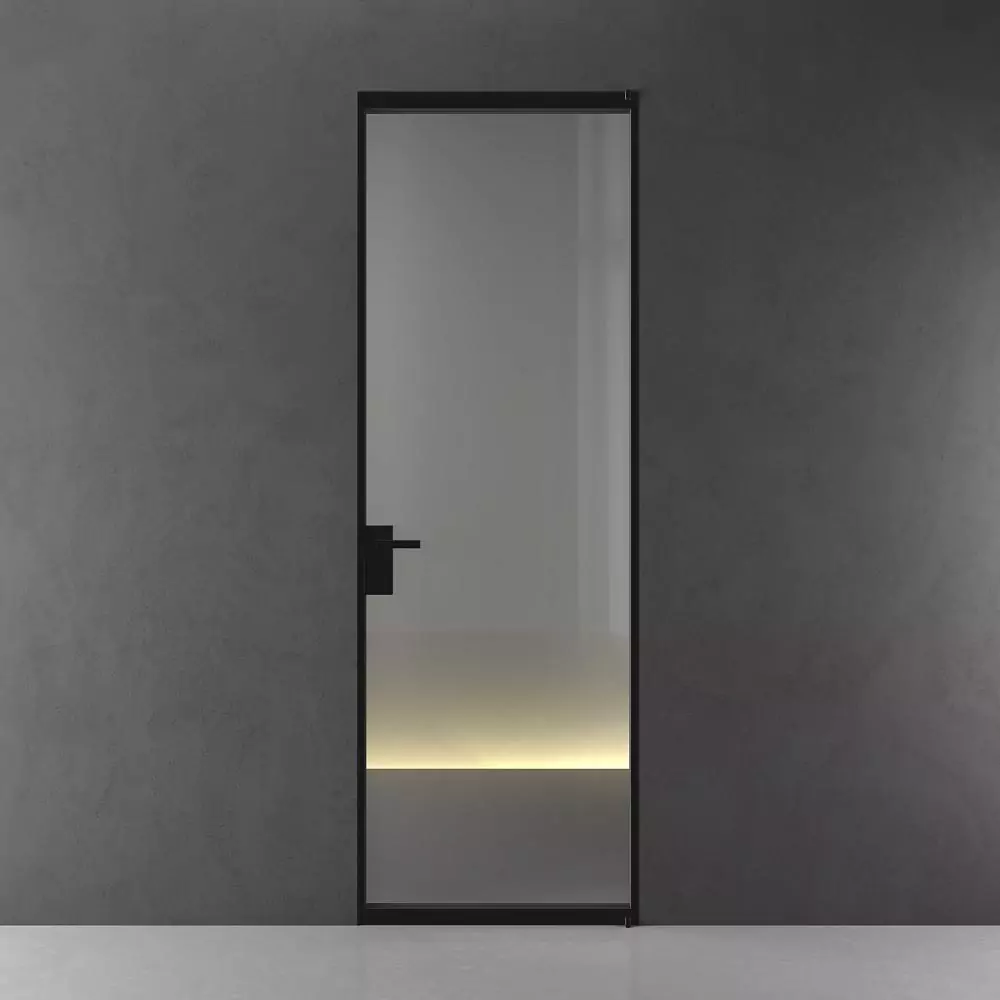

Interior door SLIM. Aluminum profile, glass.

Minimal cost in collection

SLIM, Space, TRANSPARENT GLASS; INVISIBLE.
Price per set: canvas with safe translucent Trasparente glass, Space model, conditional size 60/70/80/90x200/210 cm, "hidden" door frame and aluminum frame of the canvas in the finish – Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Finishes
TRANSPARENT & SATIN GLASS. Transparent and frosted tempered safety glass.
  • GT01 Trasparente

  • GT02 Trasparente Grafite

  • GT03 Trasparente Bronzo

  • GT05 Trasparente Sole

  • GS04 Satinato Bianco

  • GS08 Satinato Grafite

  • GS09 Satinato Bronzo

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Model range

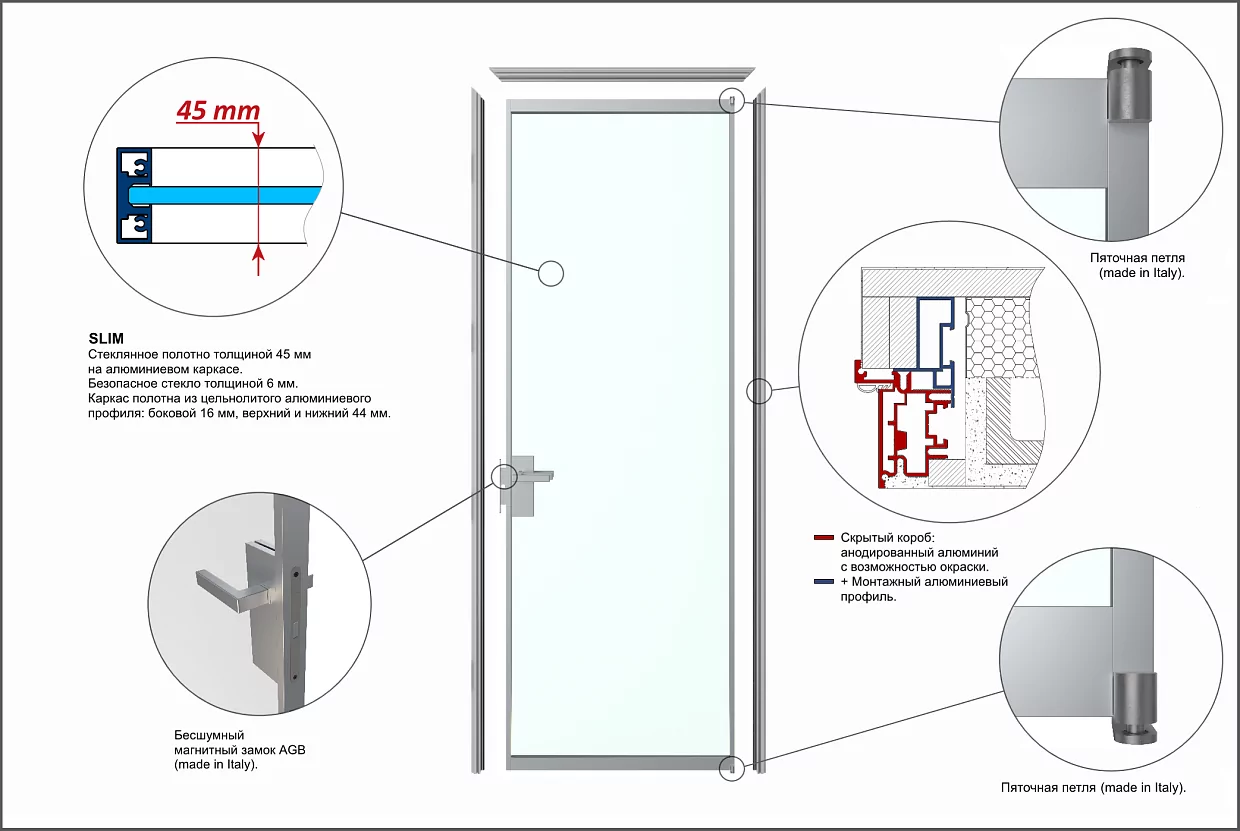

– A glass canvas on an elegant aluminum frame. The frame of the canvas is made of solid aluminum profile: side 16 mm, upper and lower 44 mm.
– Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.
– Aluminum door frame (patent UNION), cannot be deformed by humidity and temperature changes. Increased structural rigidity.
– The base finish of the door frame is anodized aluminum, Chrome Matt color. It can be used as a finish as well as a base for painting, allowing to adjust the color to the wall.
– The door frame, the aluminum frame of the canvas and the handle can be in any of the finishes offered by the manufacturer.

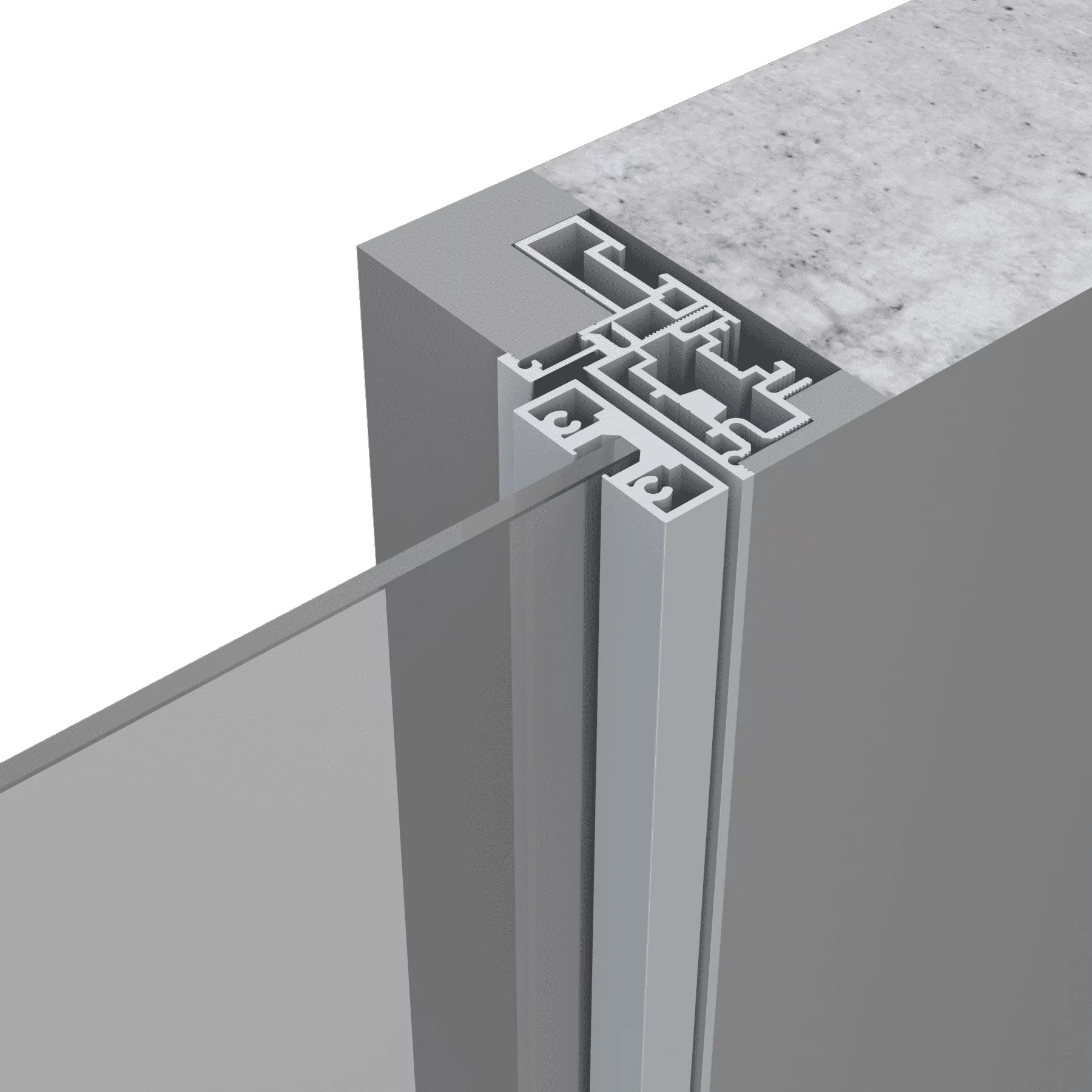

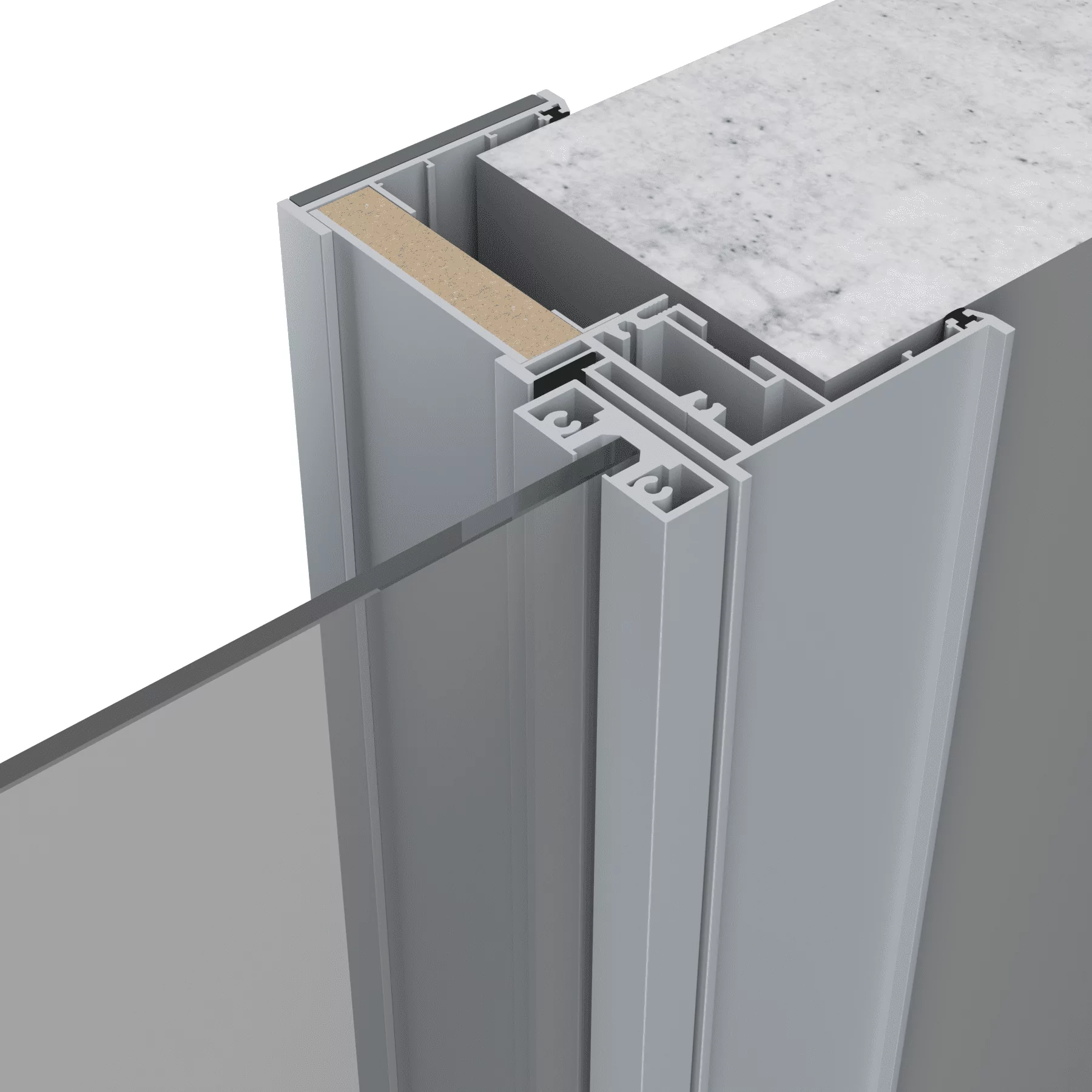

– The hidden door–frame is reversible, heat–treated aluminum. Additional structural strength is designed for heavy doors.
– Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
– Support(made in Italy), for wall mounting and adjustment.
– Heel lintels(made in Italy).
– Noise–free magnetic lock AGB (made in Italy).
– Sealer DEVENTER (made in Germany), super elastic, wear–resistant.
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.

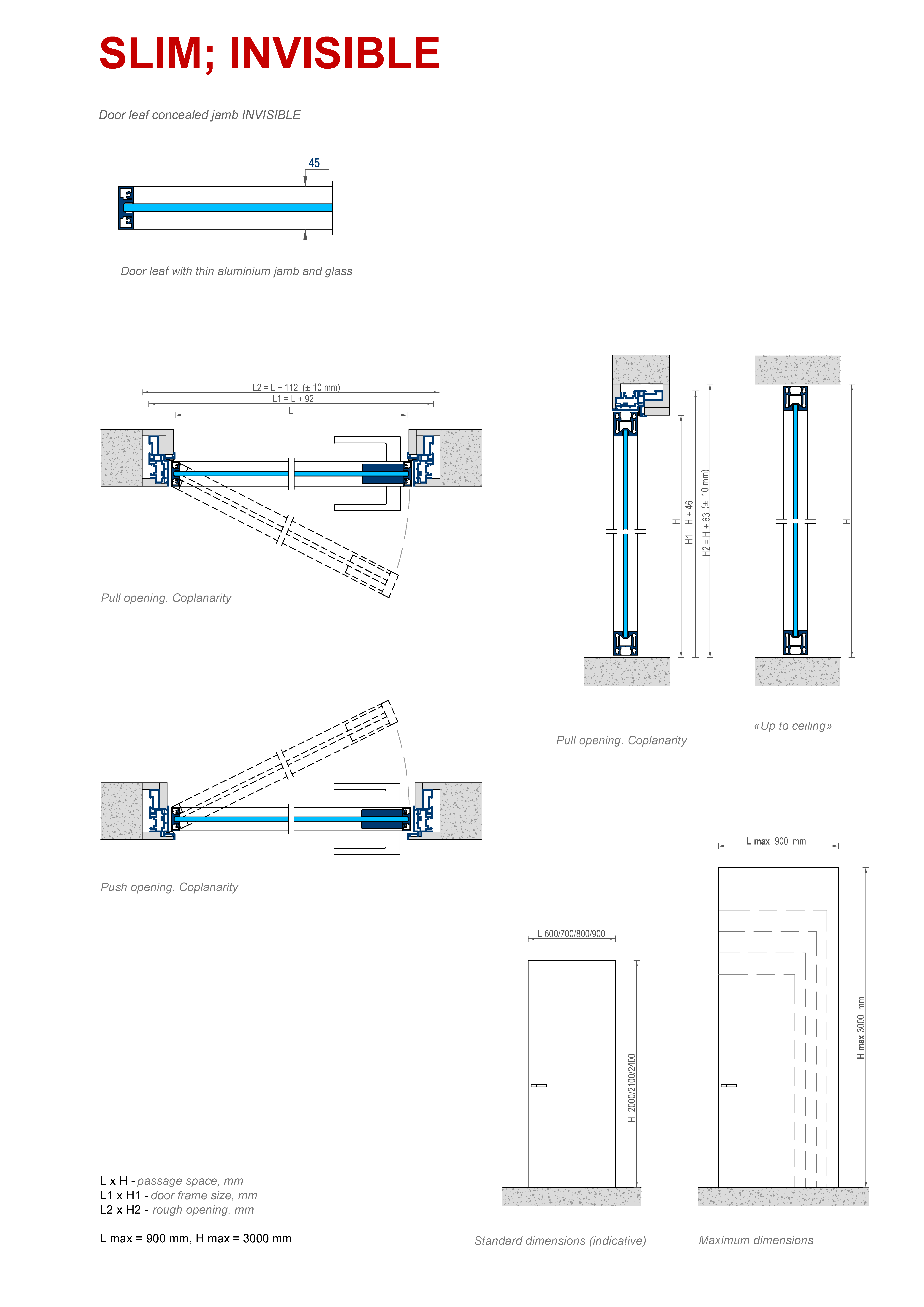

– Maximum sizes: width till 90 сm, height till 300 сm.

  • Types of doorways
  • Door kit
  • Technical information

  • Aperture preparation
Swing door
Swing door
Double doors
Double doors
Door
Door " under the ceiling"
Door with transom
Door with transom
PIVOT door
PIVOT door
Door with mirror
Door with mirror
  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
