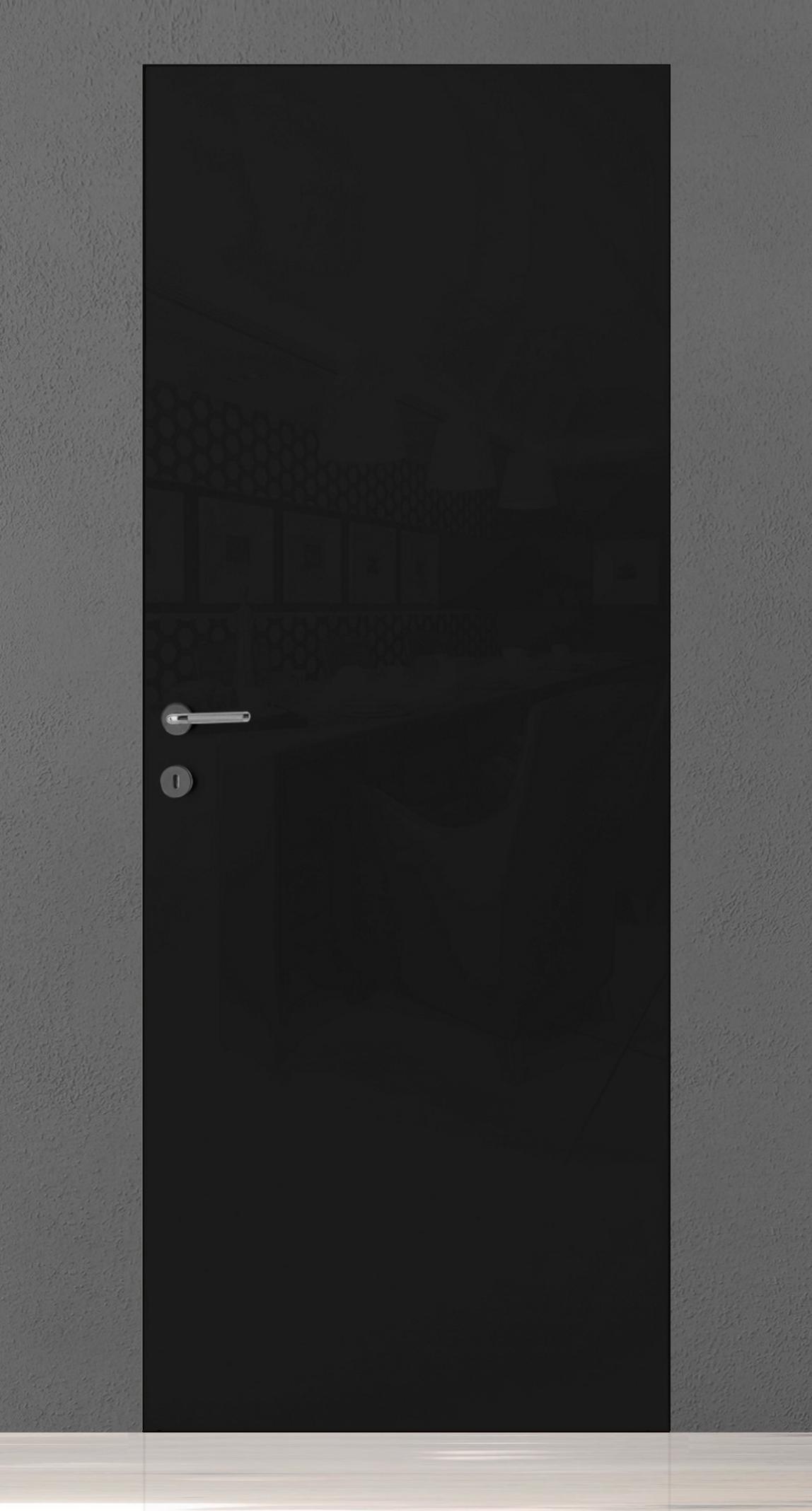

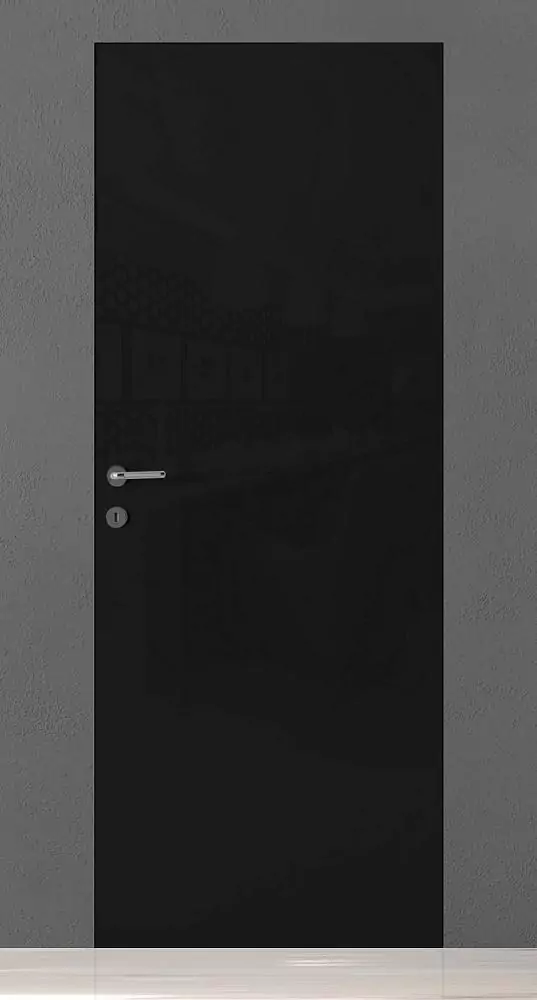

Door on a hidden door frame ALFA P, Ch, Nero Gloss, natural veneer

Minimal cost in collection

ALFA.
Price per set: canvas model " P " in Bianco finish, standard size 60/70/80x190/200/210 cm, door frame, flat platbands, sealer, hinges, magnetic lock.

Types of finishes

LACCATO. Matte enamel / factory brand colors.

LACCATO GLOSS. Glossy enamel / factory brand colors.

Door frame Options

UNIDOOR

download the catalog

- Door leaf 45 mm thick. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Options for finishing the canvas: LACCATO – matte enamel; LACCATO GLOSS - glossy enamel.
- Options for finishing the door frame and platbands: LACCATO – matte enamel.
- When the door height is more than 240 cm , it is mounted inside the canvas witha special compensation rod for correcting possible bending.
- UNIDOOR door frame is an exclusive patented system.
- The same dimensions on the casing on both sides of the door.
- Coplanarity - a single plane of the canvas and the platband.
- Hidden reinforced ANSELMI hinges, made in Italy (optional). Adjustment in three flatstah.
- Silent magnetic lock AGB (made in Italy).
- Maximum dimensions: width up to 90 cm, height up to 260 cm.

Opening types
Door kit
Technical information
Preparation of openings

Swing door on a — FILOMURO swing door in hidden door frame

<p>Up to ceiling door</p> — Up to ceiling door

<p>Sliding pocket door</p> — Sliding pocket door

<p>Sliding door with hidden MAGIC mechanism</p> — Sliding door with hidden MAGIC mechanism

1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
- finish floor or floor topping with a mark of finish floor level;
- the floor should be smooth, without weirs.
