Door on a hidden Door-frame , composite material

Minimal cost in collection

FILO-60, Alu, HPL; INVISIBLE.
Price per set: 60 mm thick canvas in HPL Marmo Bianco finish, conditional size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and a "hidden" box in the finish - Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Finishes
HPL. Decorative composite material.
  • HP04 Marmo Bianco

  • HP05 Marmo Grigio

  • HP06 Marmo Antracite

  • HP02 Pietra Calce

  • HP01 Pietra Piombo

  • HP03 Pietra Grafite

  • HP09 Skin Latte

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

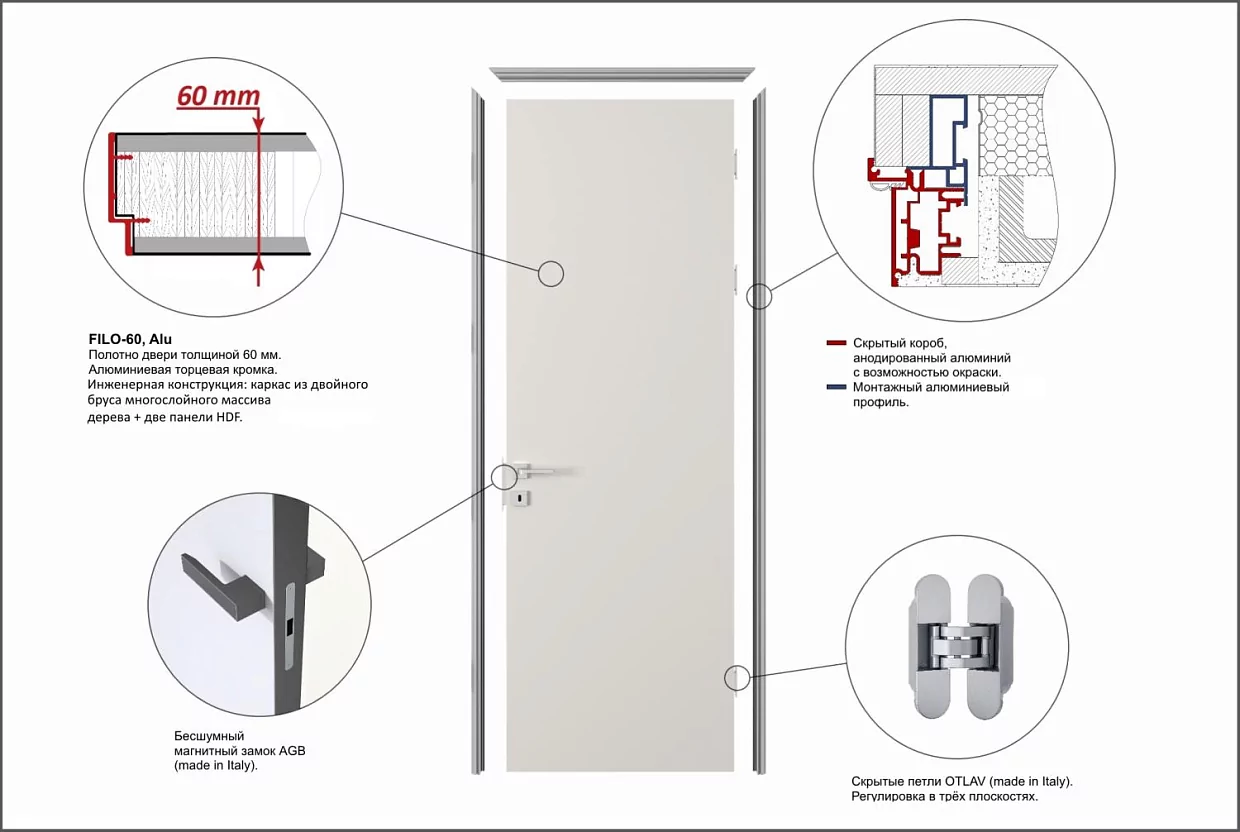

- Door leaf 60 mm, increased sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Finishing of the canvas: HPL - decorative composite material.
- Aluminum end edge – additional protection and aesthetics.
- When the door height is more than 240 cm inside the canvas, mounta special compensation rod is used to correct a possible bend.
- Aluminum door frame (patent UNION), is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. It can be both a finishing finish and a base for painting. During installation, it is possible to paint in any color together with the wall.
- The box, the end aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
- The false box is reversible, hardened aluminum. Additional structural strength is designed for heavy doors.
- Hidden reinforced loops

  • Opening types
  • Door kit
  • Technical information

  • Preparation of openings
Swing door
Swing door
Double doors
Double doors
Door
Door " under the ceiling"
Door with transom
Door with transom

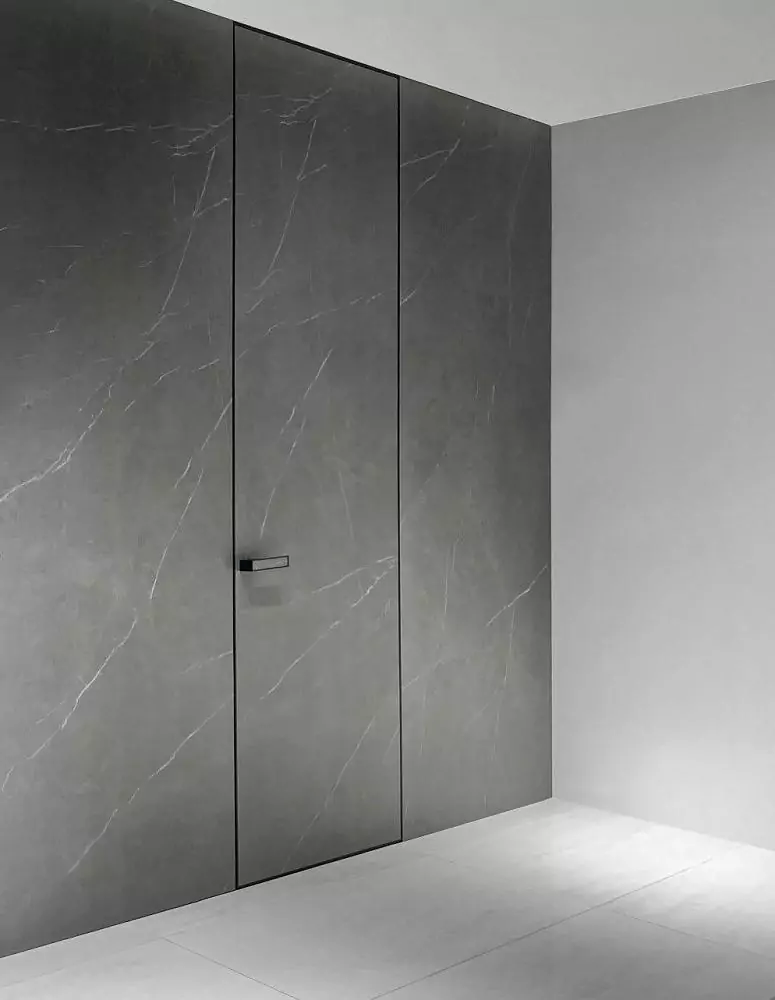

PIVOT door
PIVOT door
Door with mirror
Door with mirror
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.
