Door on a hidden box, glossy enamel

Minimal cost in collection

FILO-60, LACCATO GLOSS; INVISIBLE.
Price per set: 60 mm thick canvas in the finish glossy enamel Bianco Gloss, conditional size 60/70/80/90x200/210 cm, "hidden" box in the finish - Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Finishes
LACCATO GLOSS. Glossy enamel / factory brand colors.
  • LG01 Bianco Gloss

  • LG02 Bianco Night Gloss

  • LG03 Avorio Gloss

  • LG06 Grigio Seta Gloss

  • LG11 Tortora Gloss

  • LG12 Sabbia Gloss

  • LG13 Rocca Gloss

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

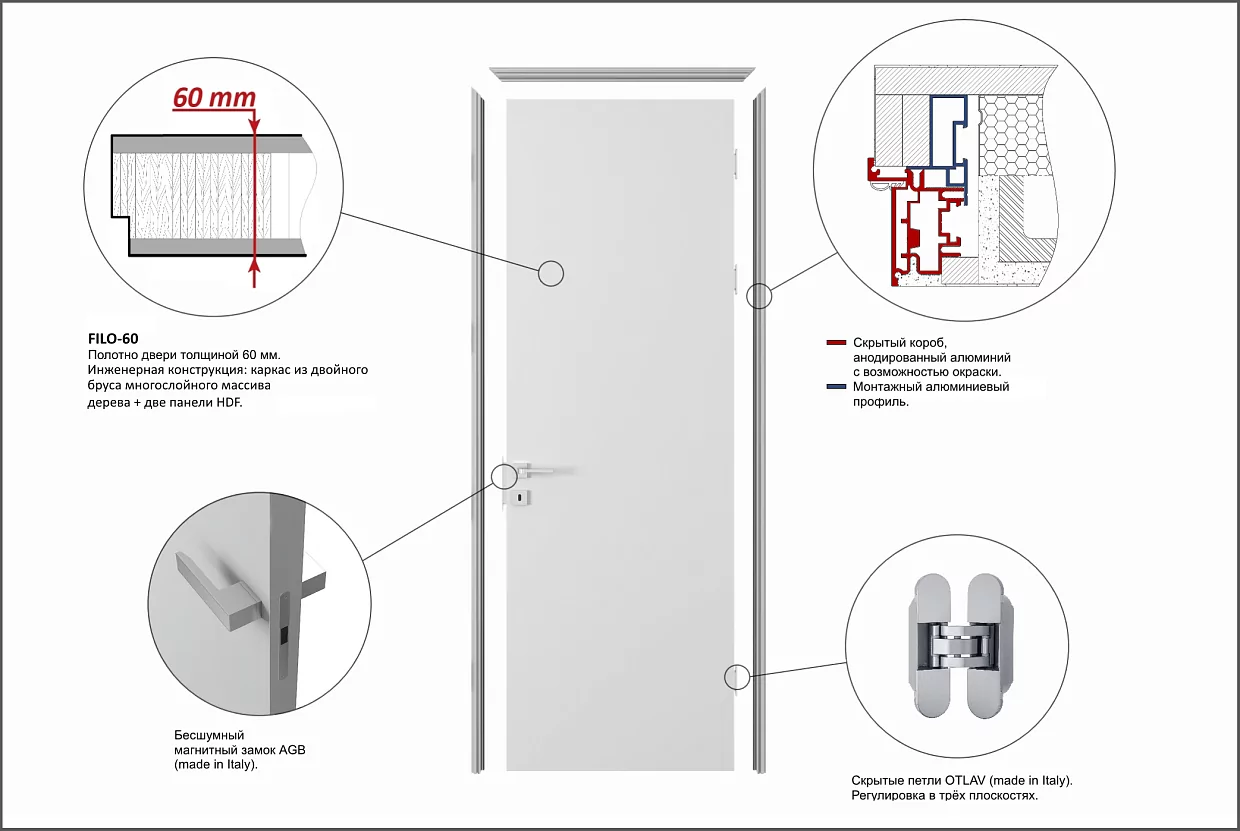

- Door leaf 60 mm, increased sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Options for finishing the canvas: LACCATO GLOSS – glossy enamel.
- When the door height is more than 240 cm, a special compensation rod is mounted inside the canvas to adjust the possiblewow bend.
- The "hidden" aluminum box (patent UNION), is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. It can be both a finishing finish and a base for painting. During installation, it is possible to paint in any color by weightthe ones with the wall.
- The box and handle can be in any of the finishes offered by the manufacturer.
- The false box is reversible, hardened aluminum. Additional structural strength is designed for heavy doors.
- Hidden reinforced OTLAV loops (made in Italy). Adjustment in three planes.
- Silent magnetic lock AGB (made in Italy).
- DEVENTER seal (made in Germany), super elastic, wear-resistant.
- Calipers (made in Italy), for wall mounting and adjustment.
- Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
- Opening "From the opening - OUT" (180°) or "Into the opening - IN" Inverso model (95°) with theby the principle of coplanarity (a single plane with a wall).
- Maximum dimensions: width up to 100 cm, height up to 350 cm.

  • Opening types
  • Door kit
  • Technical information

  • Preparation of openings
Swing door
Swing door
Double doors
Double doors
Door
Door " under the ceiling"
Door with transom
Door with transom
PIVOT door
PIVOT door
Door with mirror
Door with mirror
