Premium door PIVOT-45, matt enamel

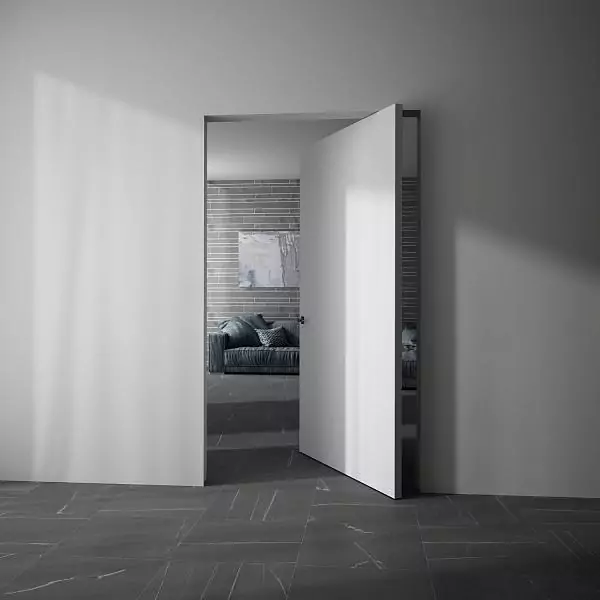

PIVOT-45, Bianco matte enamel.

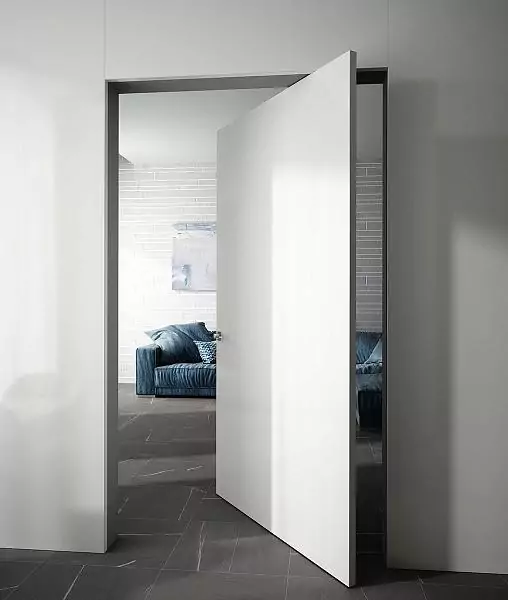

PIVOT-45, Bianco matte enamel.
Description of the collection

A new model(brand new model) from UNION is a pivot door PIVOT-45 without a door frame. The canvas is 45 mm thick in FONDO and LACCATO finishes. The aluminum profile is available in any of 9 possible finishes.

- Door leaf 45 mm. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Options for finishing the canvas: FONDO - primer for painting, LACCATO – matte enamel.
- Aluminum edge – additional protection and aesthetics (optional).
- When the door height is more than 240 cm, the special compensation rod for correcting possible bending  is mounted  inside of the canvas.
- The aluminum edge and handle can be in any of the finishes offered by the manufacturer.
- Hidden reinforced pivoting hinges.
- Maximum dimensions: width up to 120 cm, height up to 300 cm.
Options for finishing the canvas
FONDO. Primed coating for painting.
  • L00 Fondo

LACCATO. Matte enamel / factory brand colors.
  • L01 Bianco

  • L02 Bianco Night

  • L03 Avorio

  • L06 Grigio Seta

  • L11 Tortora

  • L12 Sabbia

  • L13 Rocca

Finishing options for the end edge of the web
ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Technical information

Preparation of the doorway
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.

Price per set: canvas for painting, conditional size 70/80/90x200/210 cm, swivel hinges.
