Premium door PIVOT-45, milling, natural veneer

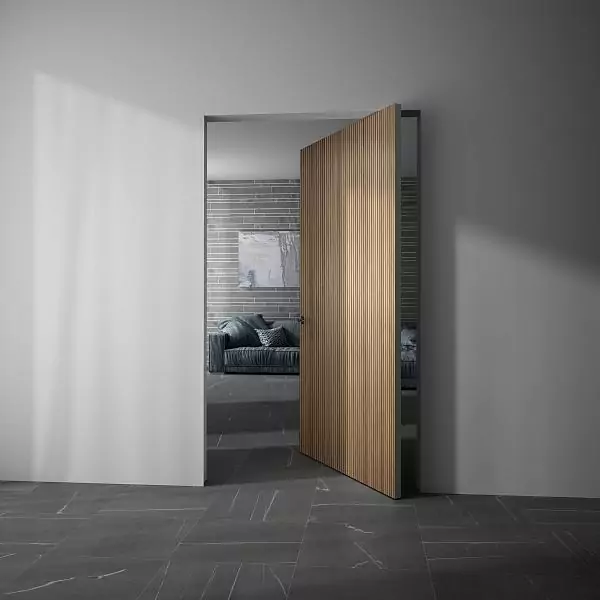

PIVOT-45, Alu, Step-V model, natural veneer Noce Canaletto, 3D volumetric milling. Aluminum end edge and handle in Black finish.
Description of the collection

A novelty from UNION is a pivot door PIVOT–45 without a box. The canvas is 45 mm thick with an end aluminum edge.
- Model: Step – with linear vertical milling on natural veneer. The direction of the veneer pattern corresponds to the milling direction.
- Model: Bolla – relief, structural pattern on natural veneer Noce Canaletto, the direction of the veneer pattern is only horizontal.
The end aluminum profile is available in any of 9 possible finishes.

- Door leaf 45 mm. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Options for fabric finishes: Veneer - natural veneer. matt lacquer.
- Aluminum end edge – additional protection and aesthetics.
- When the door height is more than 240 cm, a special lump is mounted inside the canvasa pension rod for correcting a possible bend.
- The end aluminum edge and handle can be in any of the finishes offered by the manufacturer.
- Hidden reinforced swivel hinges.
- Maximum dimensions: width up to 120 cm, height up to 300 cm (for Step-V model).
- Maximum dimensions: width up to 90 cm, height up to 240 cm (for the Bolla model).
Design and finishes
Types of designs and finishes of UNIFLEX-3D. Volumetric milling, natural veneer. Relief, structural 3D drawing.
  • Bolla, UB16 Noce Canaletto.

  • Step, US17 Rovere Chiaro

  • Step, US16 Noce Canaletto

  • Step, US20 Noce Americano

  • Step, US15 Rovere Tabacco

  • Step, US24 Rovere Fume

  • Step, US23 Makassar

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Technical information

Preparation of the doorway
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.

Price per set: Bolla canvas model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum end edge on the canvas in Chrome Matt anodizing finish, swivel hinges.
