PIVOT-60 rotary door, HPL composite material

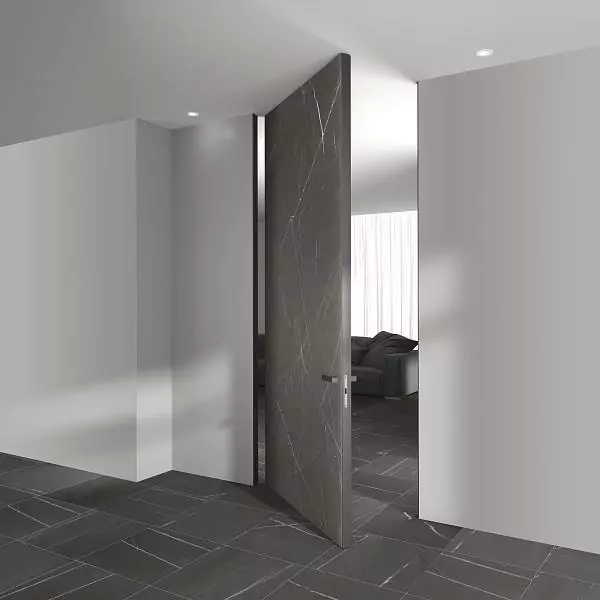

PIVOT-60, Alu, decorative composite material Marmo Grigio. Hidden box, aluminum end edge and handle in Black finish.
Description of the collection

A new product from UNION is a pivot door PIVOT-60 on hidden box. The canvas is 60 mm thick in HPL finishes with end aluminum edge.
Hidden aluminum box and end aluminum profile are available in any of 9 possible finishes.

- Door leaf 60 mm, increased sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Finishing of the canvas: HPL - decorative composite material.
- Aluminum end edge – additional protection and aesthetics.
- When the door height is more than 240 cm inside the canvas, mounta special compensation rod is used to correct a possible bend.
- The box is aluminum, it is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. It can be both a finishing finish and a base for a coverasku. During installation, it is possible to paint in any color together with the wall.
- The box, the end aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
- Hidden reinforced swivel hinges.
- Silent magnetic lock AGB (made in Italy).

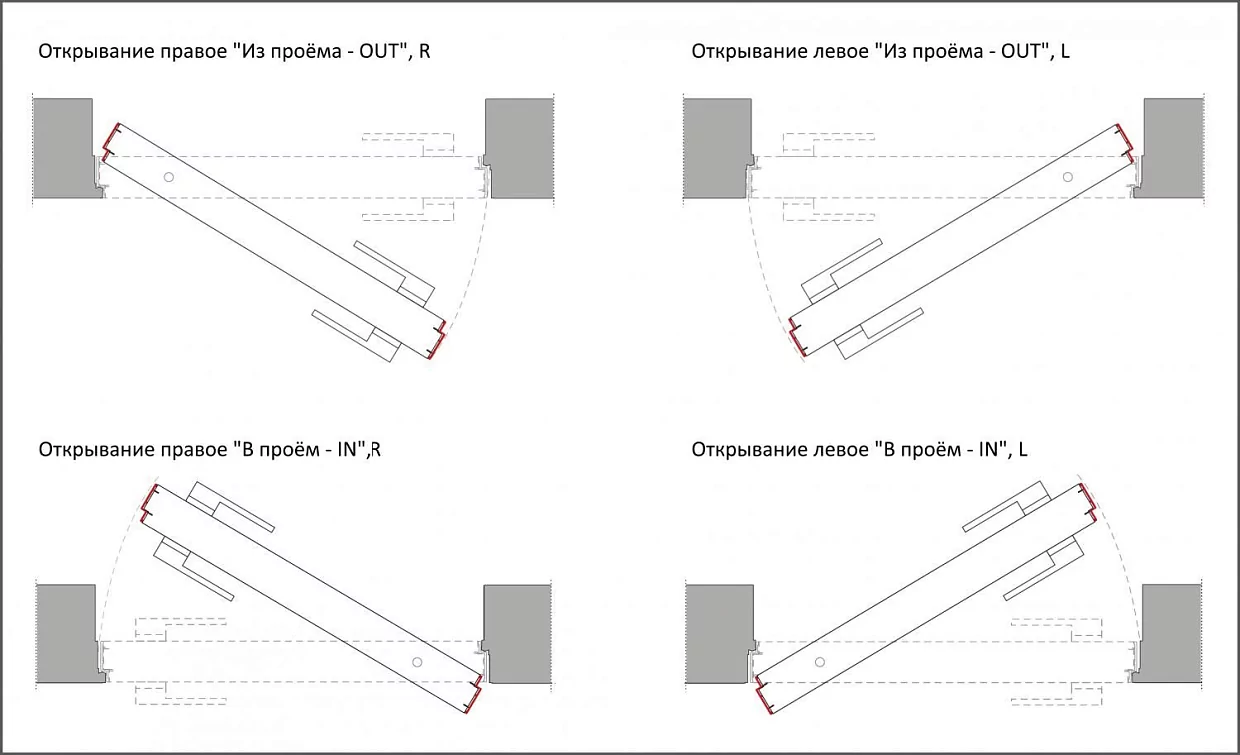

- Opening "From the opening - OUT" or "Into the opening - IN" with the preservation of the coplanarnosti (a single plane with a wall).
- Maximum dimensions: width up to 120 cm, height up to 300 cm.
HPL. Decorative composite material.
  • HP04 Marmo Bianco

  • HP05 Marmo Grigio

  • HP06 Marmo Antracite

  • HP02 Pietra Calce

  • HP01 Pietra Piombo

  • HP03 Pietra Grafite

  • HP09 Skin Latte

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold


Technical information

Preparation of the doorway
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.

PIVOT-60, Alu, HPL.
Price per set: canvas in HPL Marmo Bianco finish, nominal size 60/70/80/90x200/210 cm. Aluminum end edge on the canvas, "hidden" aluminum box in Chrome Matt anodizing finish, sealer, hinges, magnetic lock.
