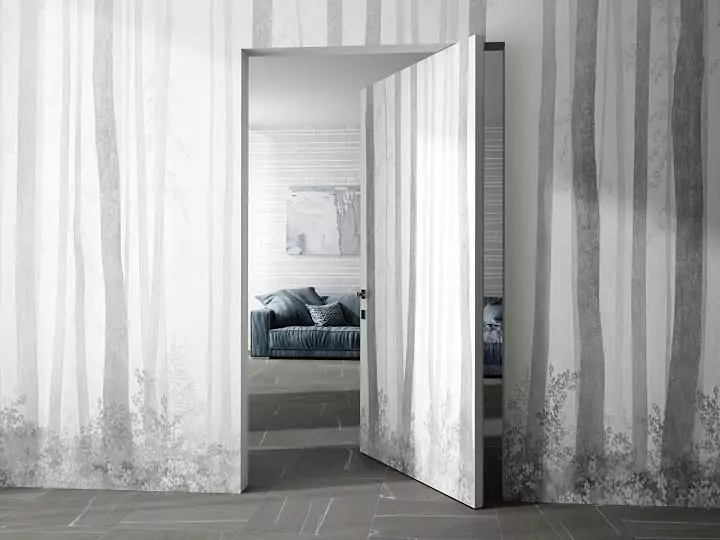

PIVOT-60 swing door, natural veneer, matt enamel

PIVOT-60 is a revolving door "invisible", a hidden box in Chrome Matt finish.
PIVOT-60, Bianco matte enamel, hidden box in Chrome Matt finish.
Description of the collection

New from UNION – swing door PIVOT-60 on a hidden box. Canvas 60 mm thick in FONDO and LACCATO finishes.
Hidden aluminum box and end aluminum profile are available in any of 9 possible finishes.

Advantages
- Door leaf 60 mm, increased sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
- Options for finishing the canvas: FONDO - primer for painting, LACCATO – matte enamel.
- Aluminum end edge – additional protection and aesthetics (optional).
- When the door height is more than 240 cm a special compensation rod is mounted inside the web to correct possible bending.
- The box is aluminum, it is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. Can be as a finishing finishth, and the basis for painting. During installation, it is possible to paint in any color together with the wall.
- The box, the end aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
- Hidden reinforced swivel hinges.
- Silent magnetic lock AGB (made in Italy).
- Opening "From the opening - OUT" or "Into the opening - IN" with the preservation of coplanarity (a single plane with the wall).
- Maximum dimensions: width up to 120 cm, height up to 300 cm.
Finishes
FONDO. Primed coating for painting.
  • L00 Fondo

LACCATO. Matte enamel / factory brand colors.
  • L01 Bianco

  • L02 Bianco Night

  • L03 Avorio

  • L06 Grigio Seta

  • L11 Tortora

  • L12 Sabbia

  • L13 Rocca

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

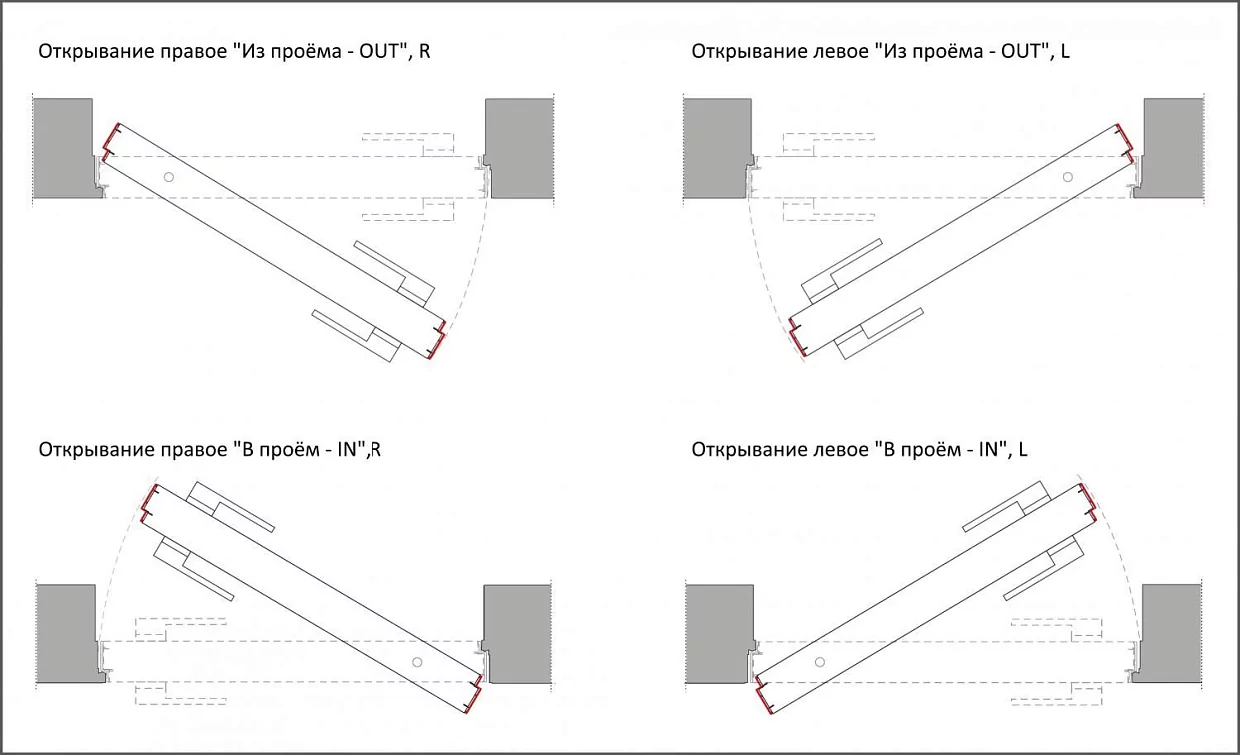

Openings
Openings

Technical information

Preparation of the doorway
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.
NEED HELP WITH YOUR ORDER?

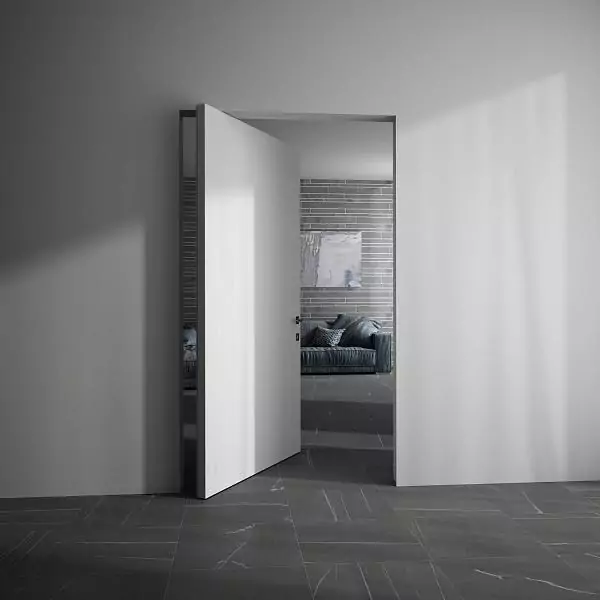

PIVOT-60, FONDO.
Price per set: canvas for painting, conditional size 60/70/80/90x200/210 cm, "hidden" aluminum box in Chrome Matt anodizing finish, sealer, hinges, magnetic lock.
