PIVOT-60 rotary door, natural veneer, 3D milling

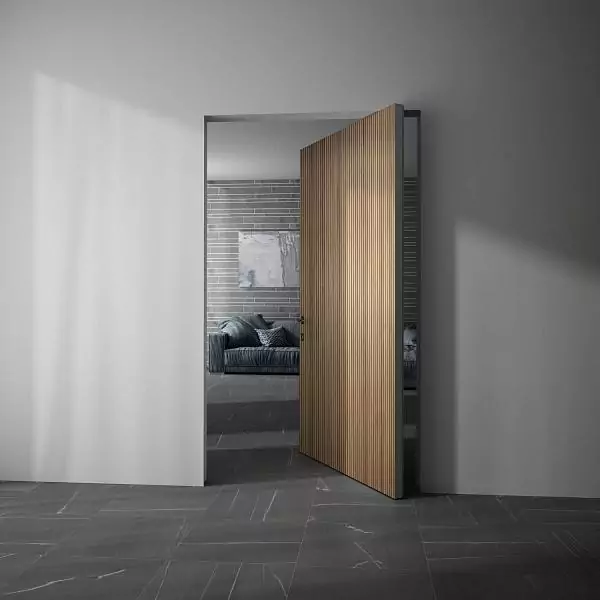

PIVOT-60, Alu, Step-V model, natural veneer Noce Canaletto, 3D volumetric milling. Aluminum edge, hidden door frame and handle in Black finish.
Description of the collection

A new product from UNION is a pivot door PIVOT-60 on hidden door frame. The canvas is 60 mm thick with aluminum edge.
- Model: Step – with linear vertical milling on natural veneer. The direction of the veneer pattern corresponds to the milling direction.
- Model: Bolla – relief, structural pattern on Noce Canaletto tural veneer, the direction of the veneer pattern is only horizontal.
Hidden aluminum door frame and edge aluminum profile are available in any of 9 possible finishes.

Advantages
planarity (a single plane with a wall).
- Maximum dimensions: width up to 120 cm, height up to 300 cm (for Step model).
- Maximum dimensions: width up to 90 cm, height up to 240 cm (for the Bolla model).
Design and finishes
Types of designs and finishes of UNIFLEX-3D. Volumetric milling, natural veneer. Relief, structural 3D drawing.
  • Bolla, UB16 Noce Canaletto.

  • Step, US17 Rovere Chiaro

  • Step, US16 Noce Canaletto

  • Step, US20 Noce Americano

  • Step, US15 Rovere Tabacco

  • Step, US24 Rovere Fume

  • Step, US23 Makassar

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

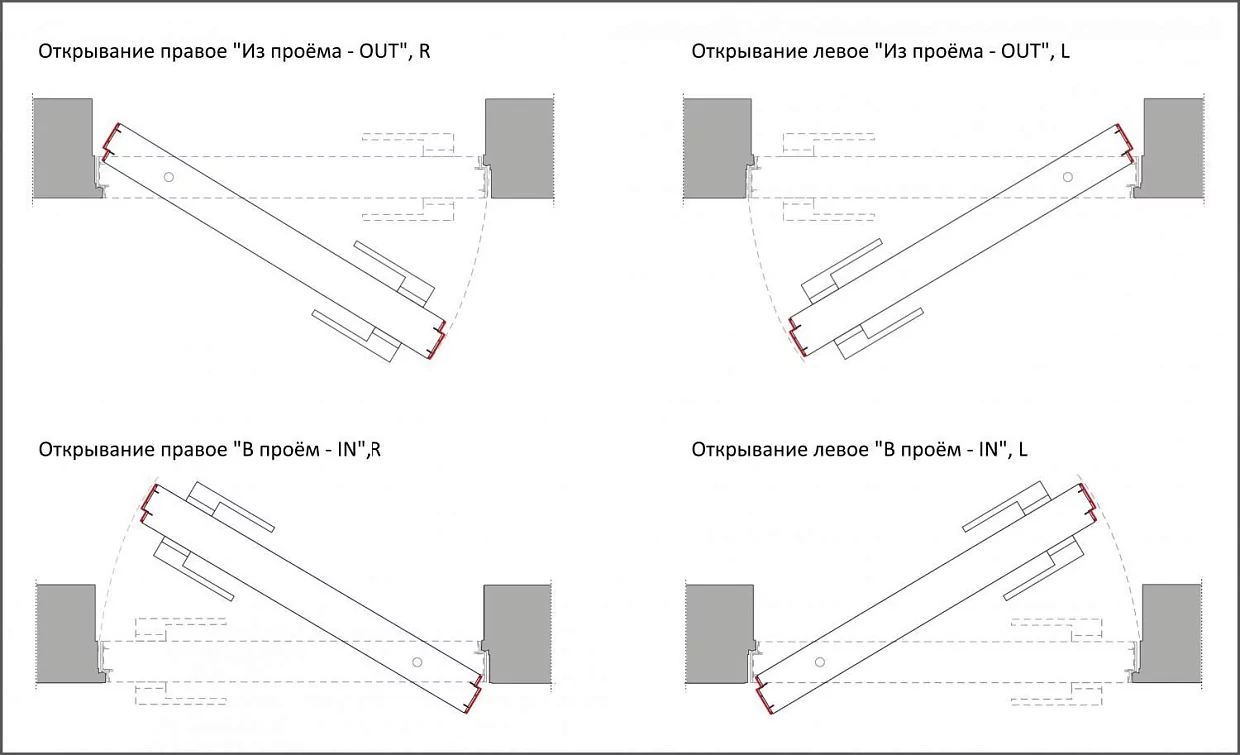

Openings
Openings

Technical information

Preparation of the doorway
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.
NEED HELP WITH YOUR ORDER?

PIVOT-60, Alu, UNIFLEX-3D.
Price per set: Bolla canvas model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and a "hidden" door frame in Chrome Matt anodizing finish, sealer, hidden swivel hinges, magnetic lock.
