Wave – with horizontal wave–shaped milling on natural veneer

Minimal cost in collection

UNIFLEX–3D, Alu, Wave; PLANAR (with insert).
Price per set: 60 mm thick canvas, Wave model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum door frame in the finish – Chrome Matt anodizing (platbands on the opening side with an insert in the finish – natural veneer Noce Canaletto), sealer, hiddenetli, magnetic lock.
Design and finishes
Types of designs and finishes of UNIFLEX–3D. Volumetric milling, natural veneer. Relief, structural 3D drawing.
  • Wave, UE16 Noce Canaletto

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

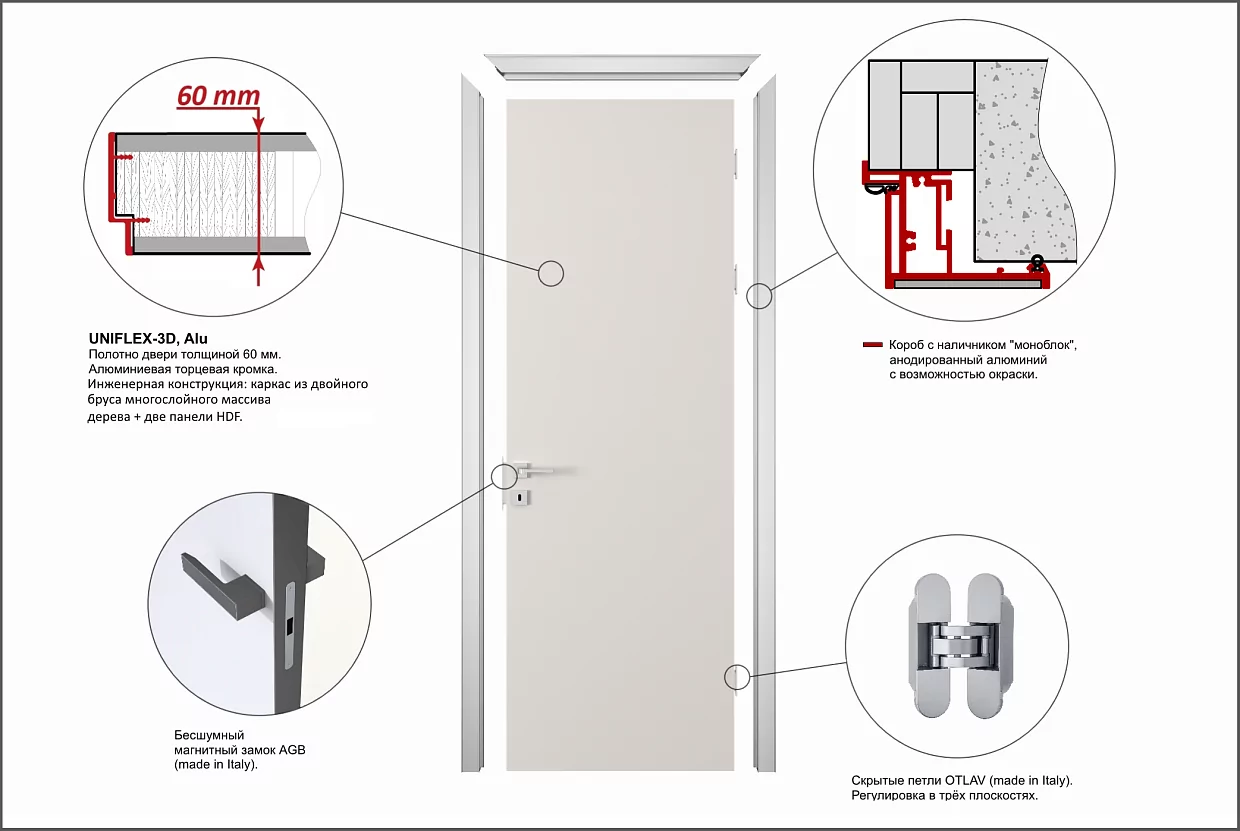

– Door leaf 60 mm, reinforced sound insulation. Engineering design, frame made of double timber of multilayer solid wood + two HDF panels.
– Finishing of the canvas: UNIFLEX–3D – relief, structural 3D drawing and volumetric milling on natural veneer, matt lacquer.
– Aluminum end edge – additional protection and aestheticica.
– When the door height is more than 240 cm, a special compensation rod is mounted inside the canvas to correct possible bending.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be both with one sidearch opening "From the opening – OUT" and "Into the opening – IN" (a monoblock door frame with a platband, coplanar to the canvas).
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 270 cm.


  • Door kit
  • Technical information

  • Aperture preparation
  • Video instruction

  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
