Door, natural veneer, matt lacquer. Aluminum box-monoblock.

Minimal cost in collection

FILO-60, VENEER; PLANAR (without insert).
Price per set: canvas with a thickness of 60 mm, Vento (Velino) model in the finish of natural veneer Noce Americano, conditional size 60/70/80/90x200/210 cm, aluminum box in the finish - Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
Finishes
VENEER. Natural veneer, matt varnish.
  • V17 Rovere Chiaro

  • V27 Rovere Americano

  • V10 Rovere Antico

  • V16 Noce Canaletto

  • V20 Noce Americano

  • V01 Noce Europeo

  • V15 Rovere Tabacco

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Model range

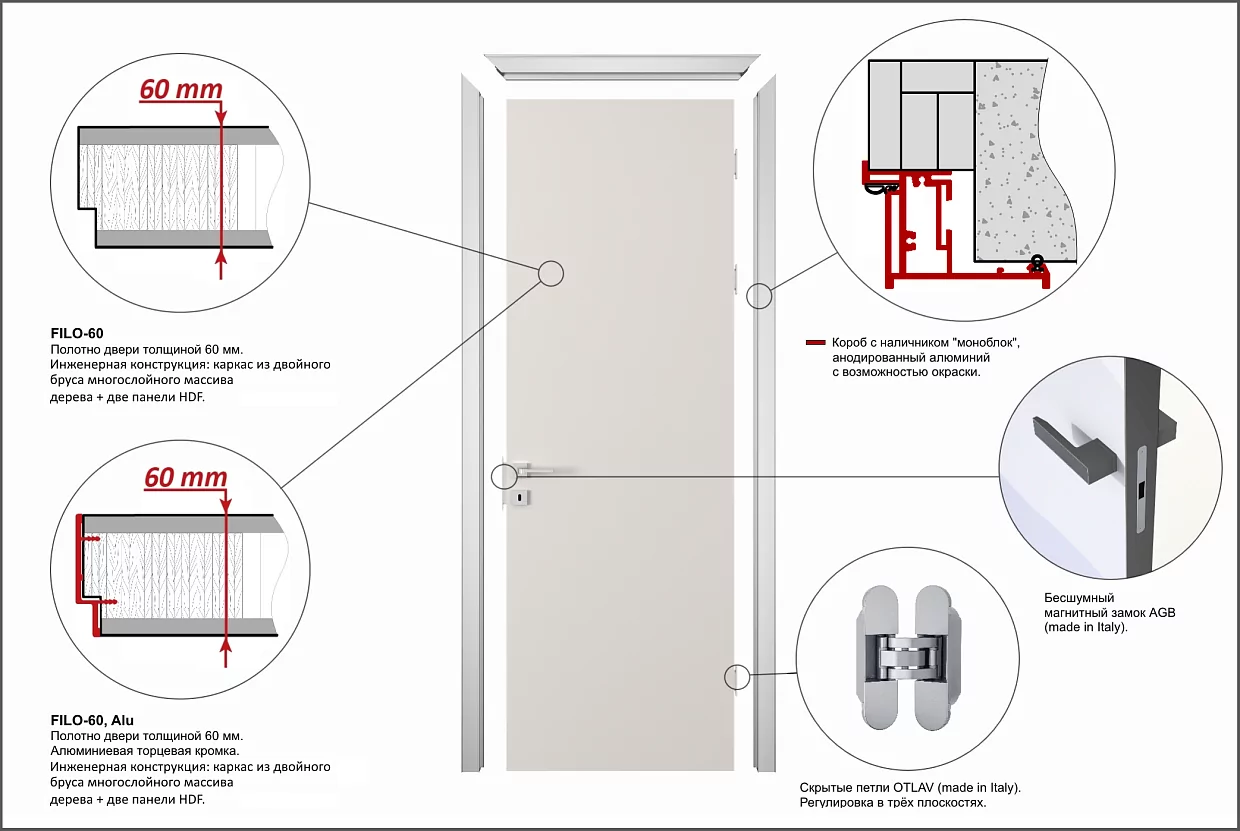

- Door leaf 60 mm, increased sound insulation. Patented engineering design, frame made of double timber of multilayer solid wood + two HDF panels.
- Finishing of the canvas with a different direction of veneer: VENEER – natural veneer, matt lacquer.
- Aluminum end edge – additional protection and aesthetics (optional).
- Prand the door height is more than 240 cm, a special compensation rod is mounted inside the canvas to correct possible bending.
- Aluminum monoblock box (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
- The platband can be both on one side (monoblockok with a box), and on both sides (optional). The design of the box has a dobora (option).
- The base finish of the box is anodized aluminum, Chrome Matt color.
- The box, the end aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
- Hidden reinforced OTLAV loops (made in Italy). Adjustment in three ploskostyakh.
- Silent magnetic lock AGB (made in Italy).
- DEVENTER seal (made in Germany), super elastic, wear-resistant.
- A special hidden sealer (made in Germany) between the casing and the wall, levels the irregularities of the wall, providing an ideal fit.
- Two coplanar opening systems "From the opening - OUT" and "Into the opening - IN" (toorob-a monoblock with a platband, coplanar to the canvas).
- Opening "From the opening - OUT" (180°) or "Into the opening - IN" Inverso model (95°).
- Possibility of installation under the ceiling without an upper jumper.
- Maximum dimensions: width up to 100 cm, height up to 350 cm.

  • Door kit
  • Technical information

  • Preparation of openings
  • Video instruction

1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.
