Door on a hidden Door–frame, natural veneer, matt lacquer

Minimal cost in collection

FILO–60, Alu, VENEER; INVISIBLE.

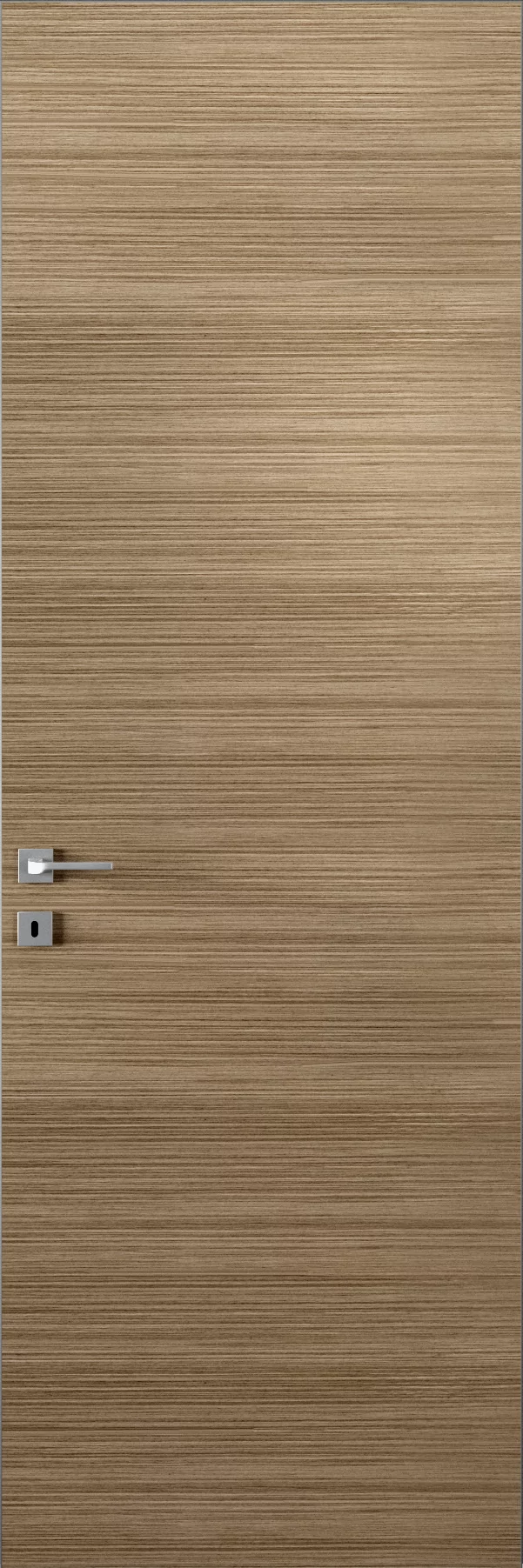

Price per set: 60 mm thick canvas, Vento (Velino) model in natural veneer finish Noce Americano, conditional size 60/70/80/90x200/210 cm, aluminum end edge and "hidden" door frame in the finish – Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Finishes
VENEER. Natural veneer, matt finish.
  • V17 Rovere Chiaro

  • V27 Rovere Americano

  • V10 Rovere Antico

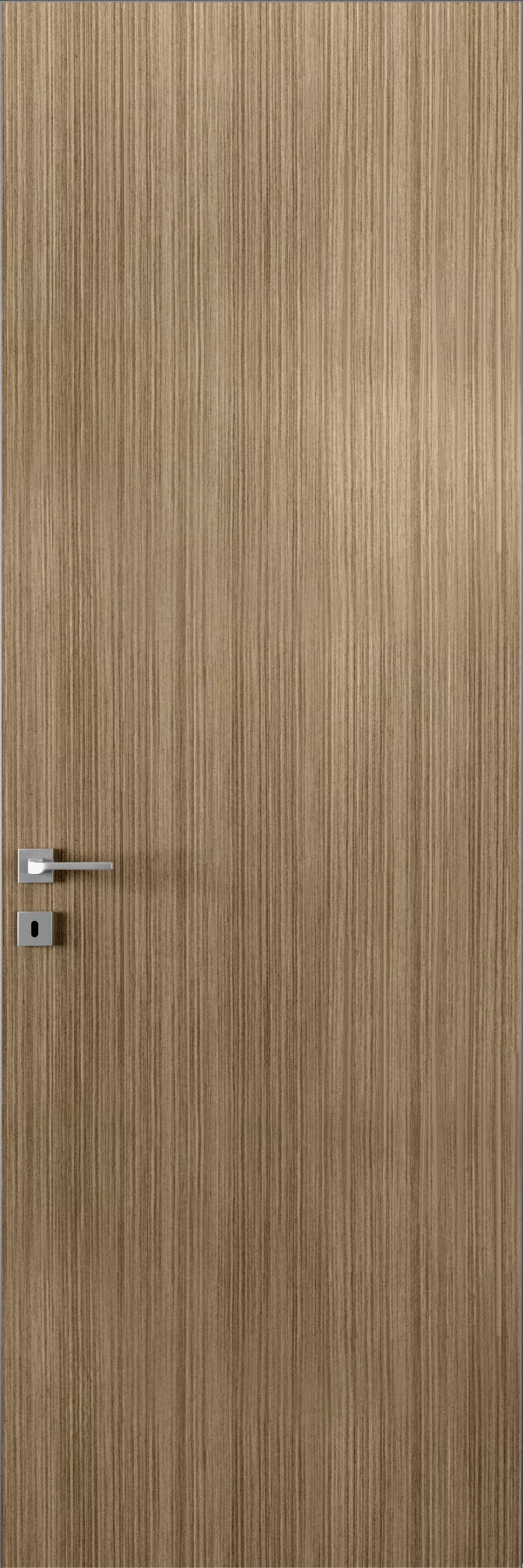

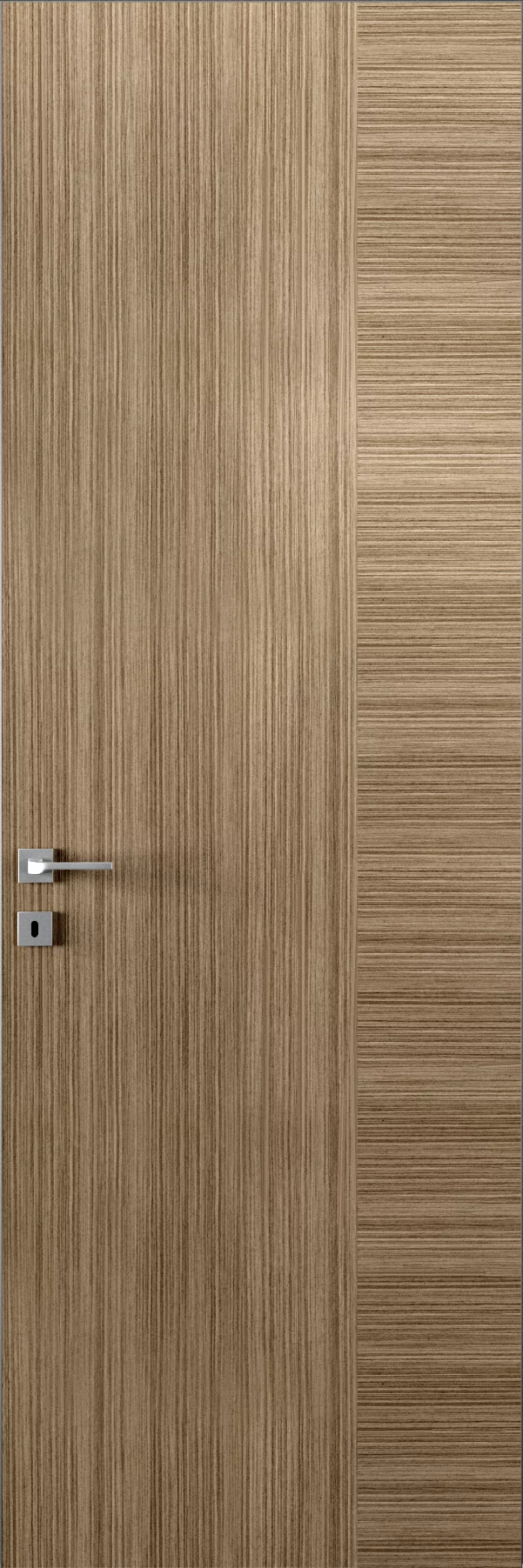

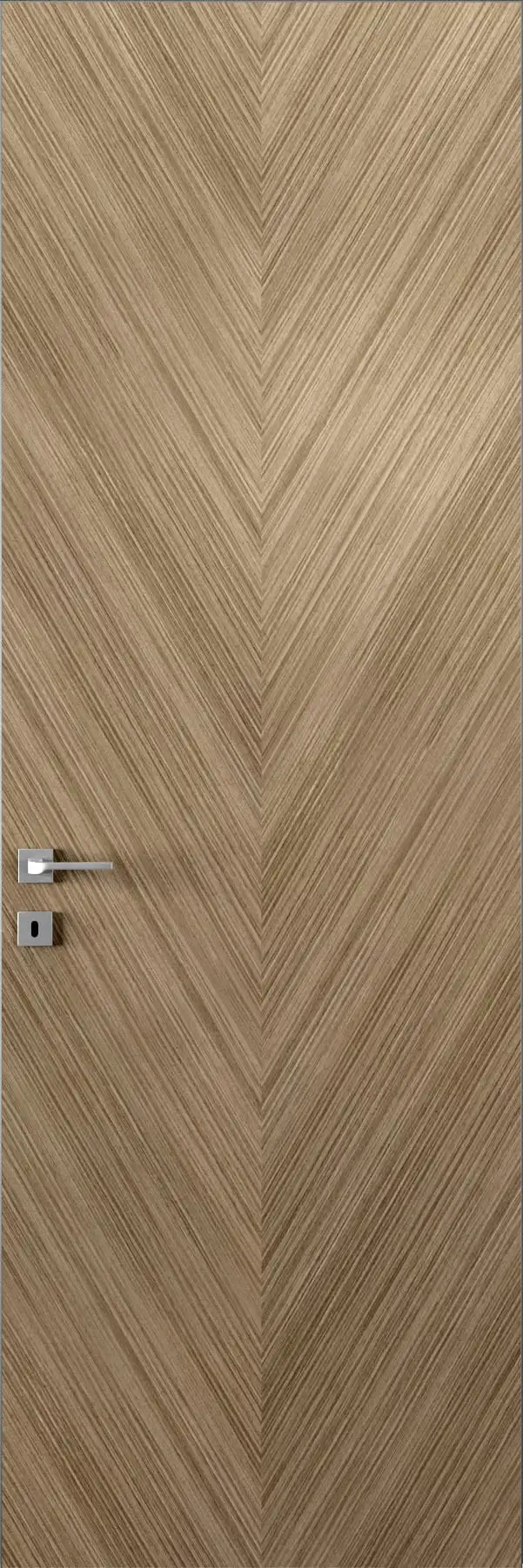

  • V16 Noce Canaletto

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

Model range

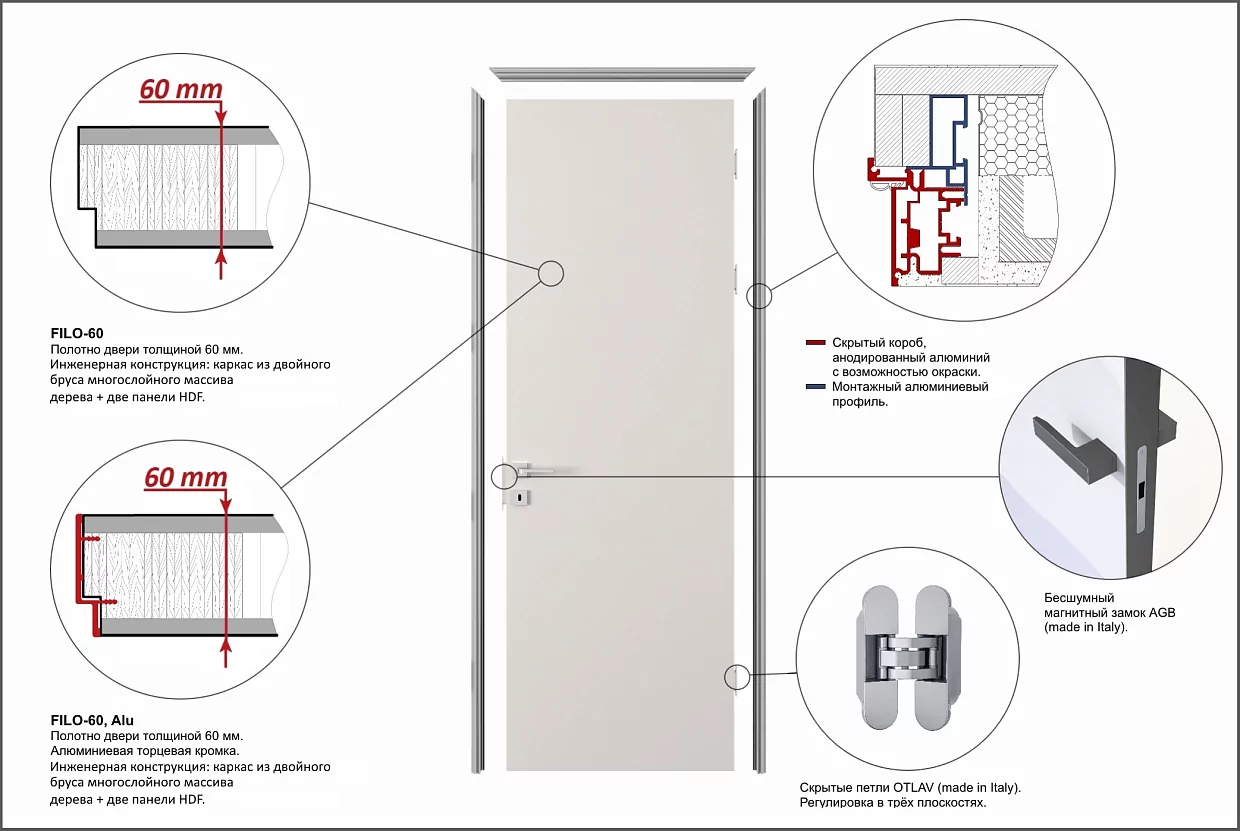

– Door leaf 60 mm, reinforced sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
– Finishing of the canvas with a different direction of veneer: VENEER – natural veneer, matt lacquer.
– Aluminum end edge – additional protection and aesthetics (optional).
– At the height of the door more than 240 cm, a special compensation rod is mounted inside the canvas to correct possible bending.
– Aluminum door frame (patent UNION), cannot be deformed by humidity and temperature changes. Increased structural rigidity.
– The base finish of the door frame is anodized aluminum, Chrome Matt color. It is available in both variants: already finish and basis for painting. During installation, it is possible to paint in any color together with the wall.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– The false  door frame is reversible, hardened aluminum. Additional structural strength is designed also for the heavy doors.

  • Types of doorways
  • Door kit
  • Technical information

  • Aperture preparation
Swing door
Swing door
Double doors
Double doors
Door

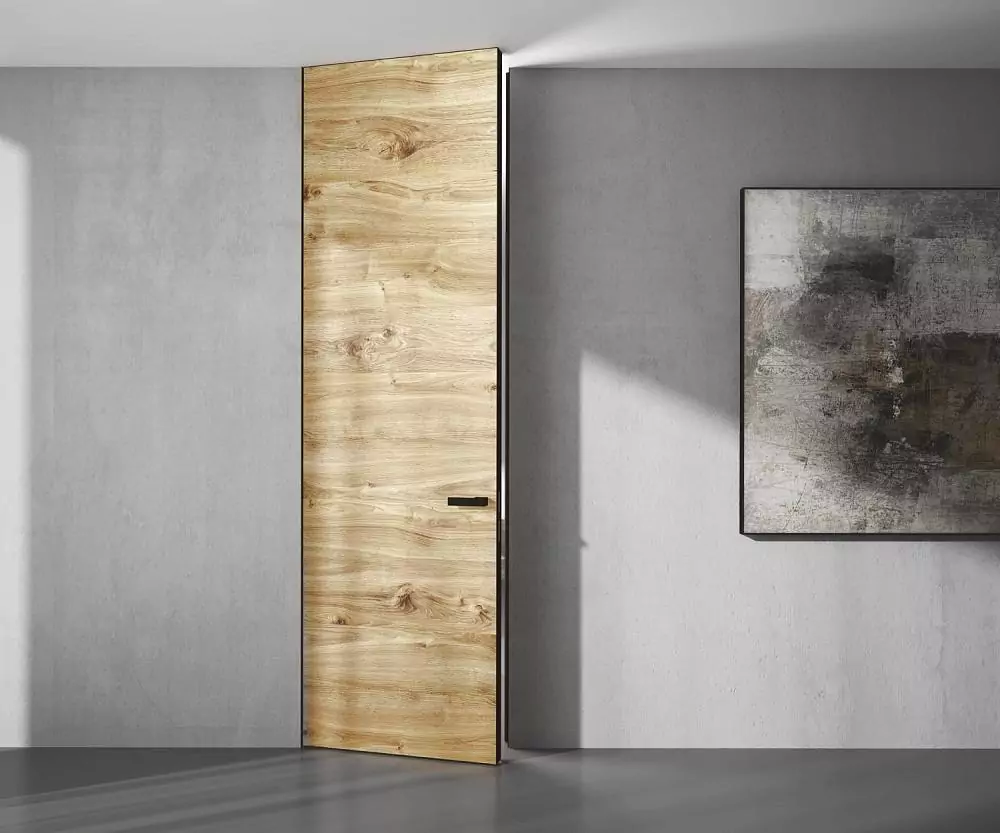

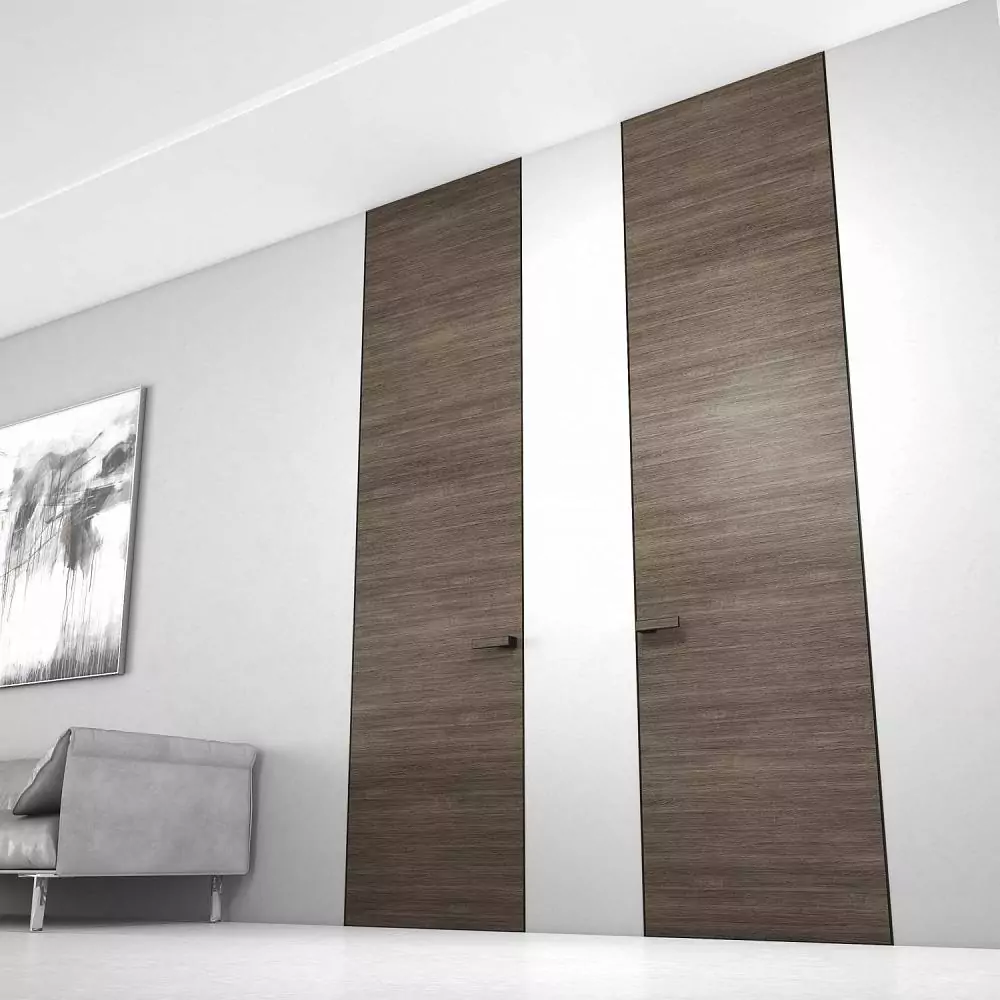

Door " under the ceiling"
Door with transom
Door with transom
PIVOT door
PIVOT door
Door with mirror
Door with mirror
  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
