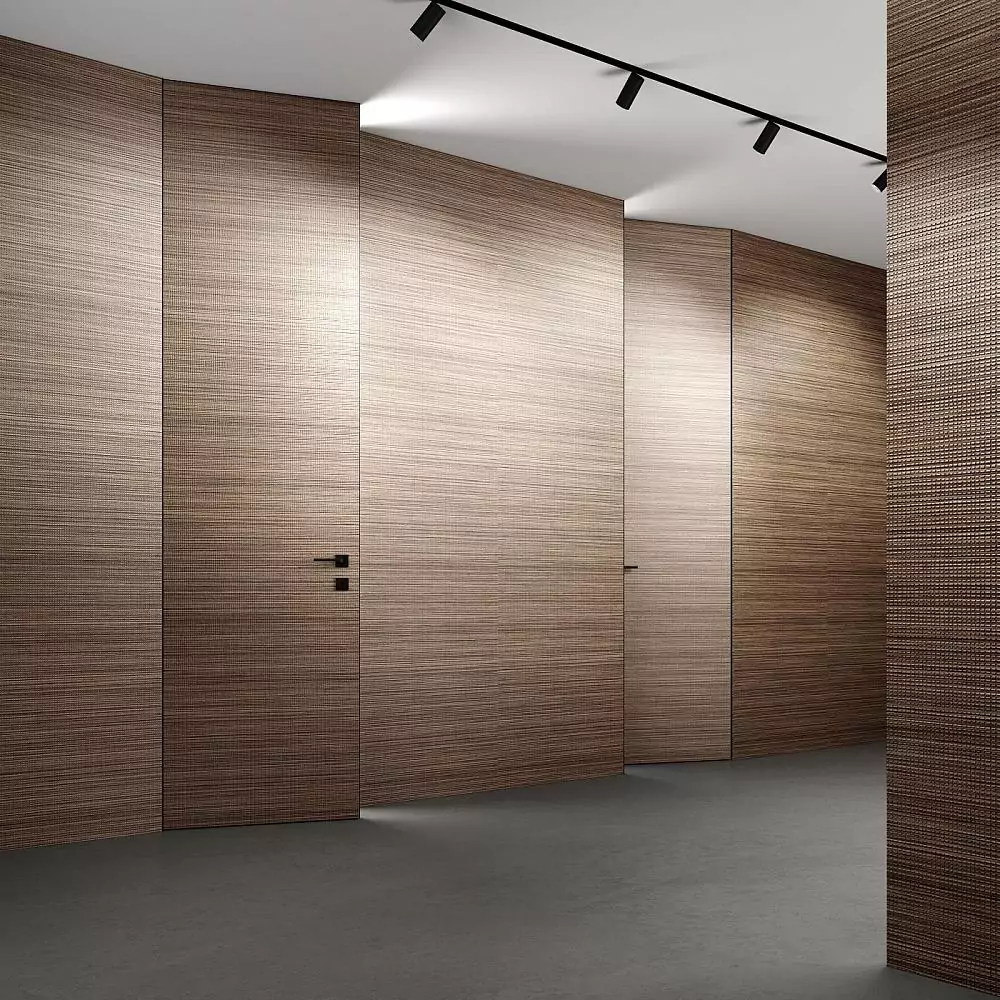

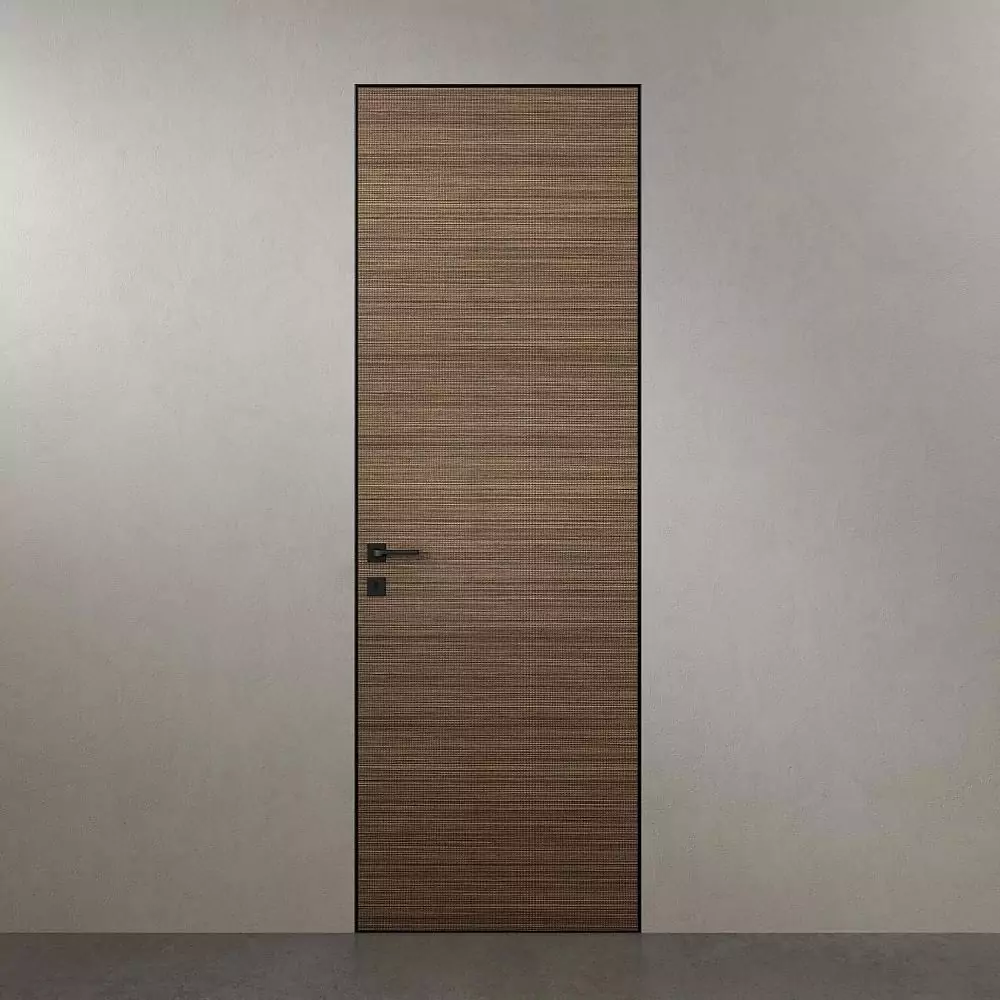

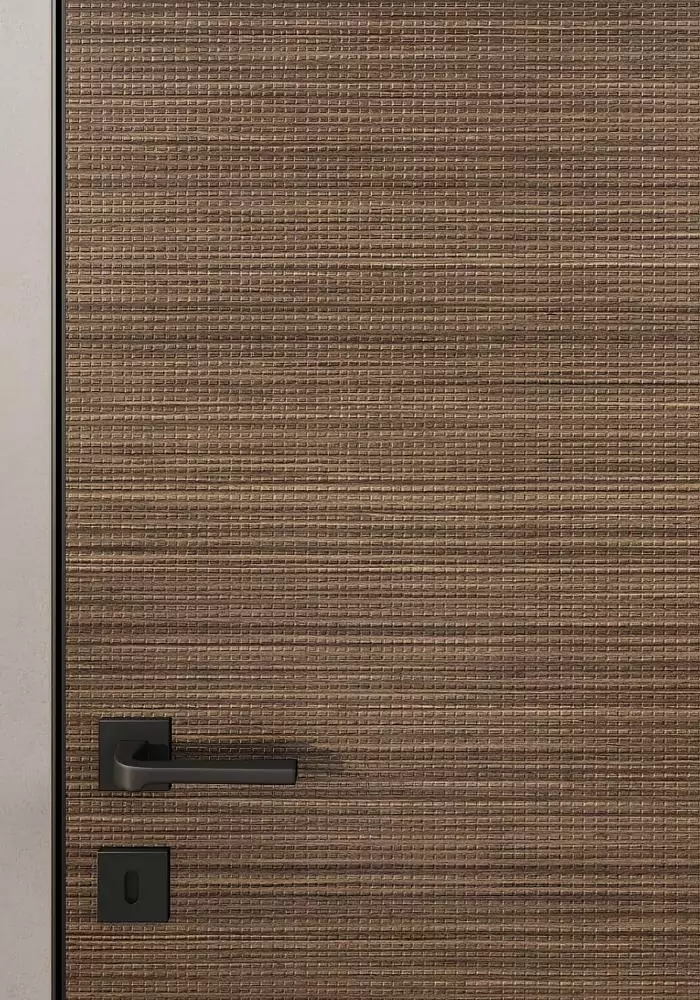

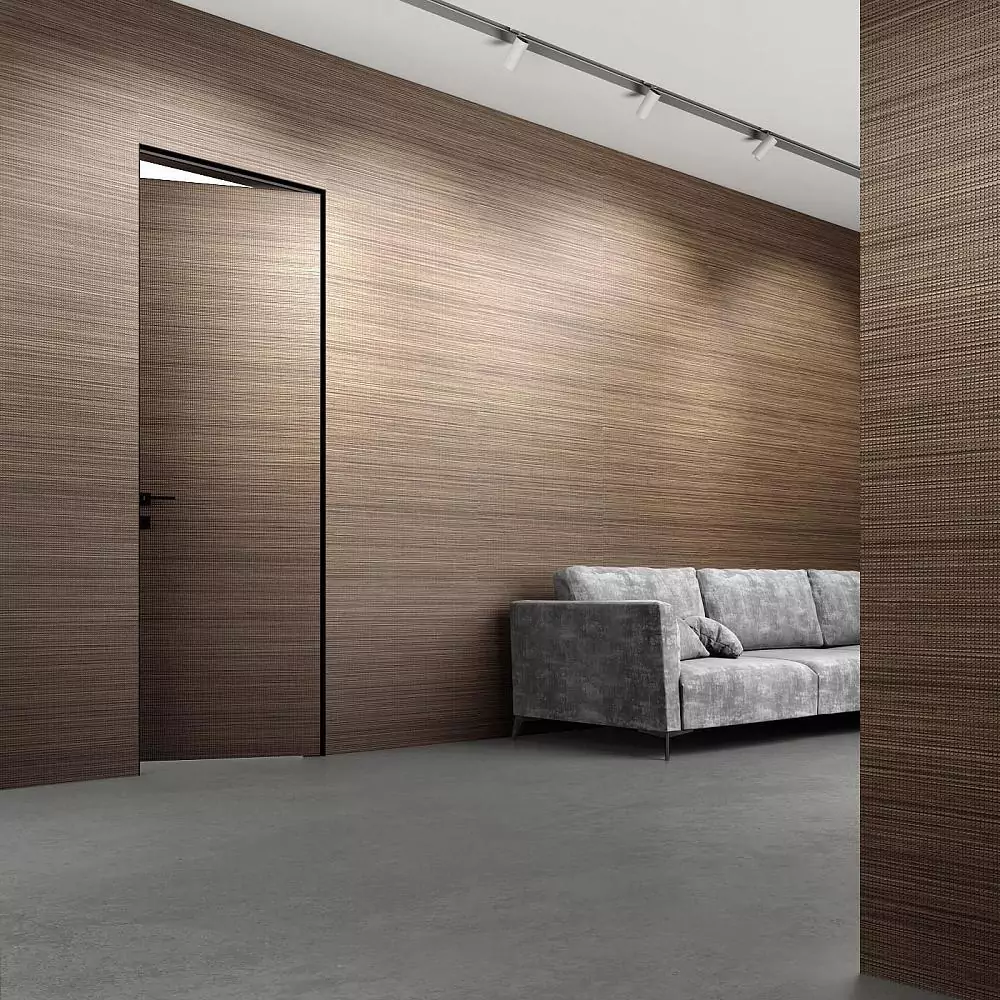

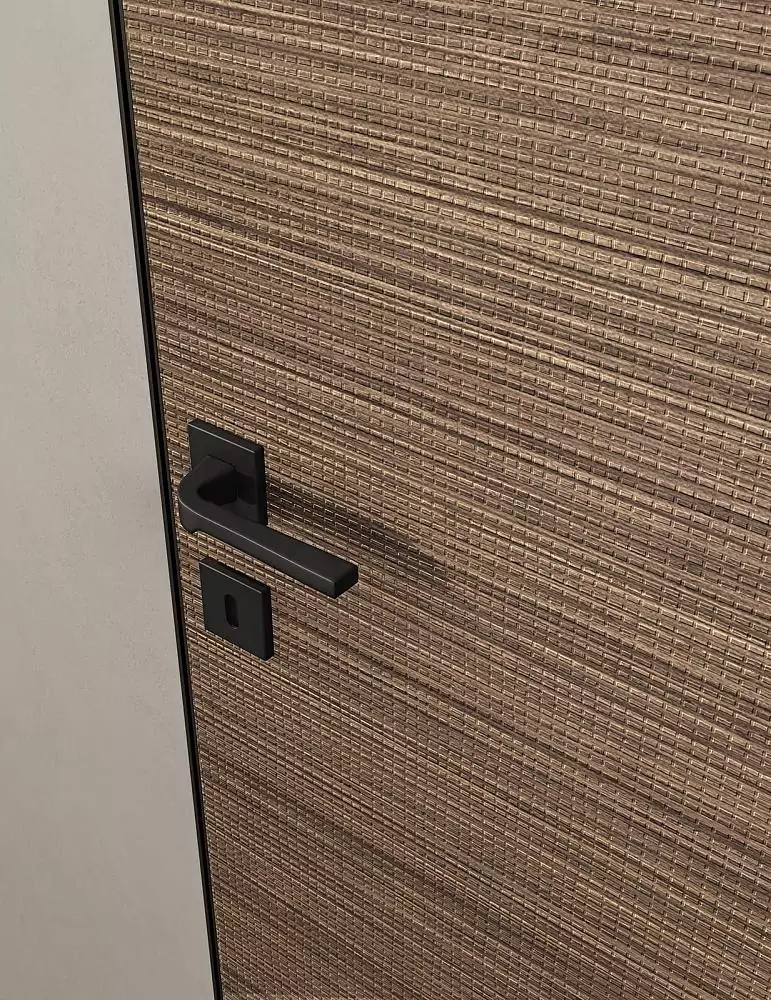

Bolla – relief, structural pattern on natural veneer

Minimal cost in collection

FILO-60, Alu, Bolla; INVISIBLE.
Price per set: 60 mm thick canvas, Bolla model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and a "hidden" box in the finish - Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Design and finishes
Types of designs and finishes of UNIFLEX-3D. Volumetric milling, natural veneer. Relief, structural 3D drawing.
  • Bolla, UB16 Noce Canaletto.

ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold


rob, end aluminum edge and handle can be in any of the finishes offered by the manufacturer.

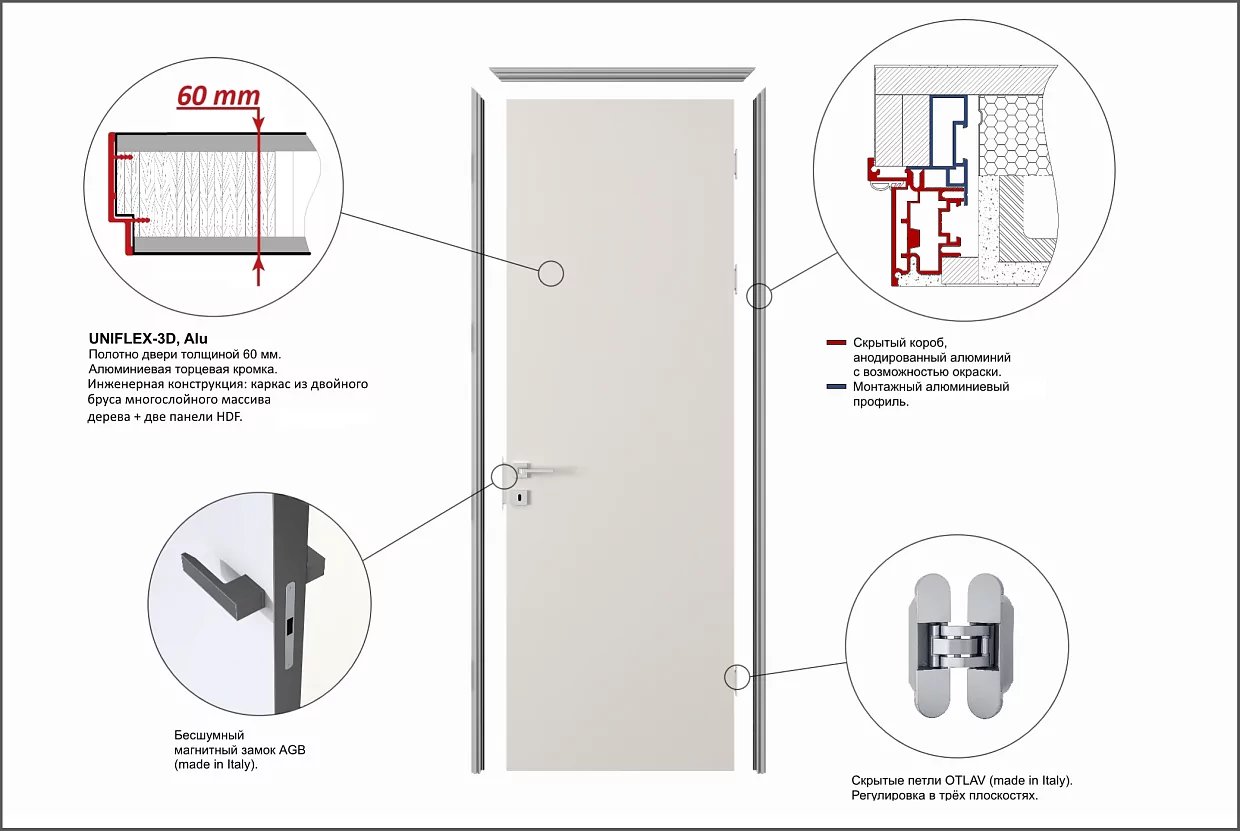

- The false box is reversible, hardened aluminum. Additional structural strength is designed for heavy doors.
- Hidden reinforced OTLAV loops (made in Italy). Adjustment in three planes.
- Silent magnetic lock AGB (made in Italy).
- DEVENTER seal (made in Germany), super elastic, wear-resistant.
- Calipers (made in Italy), for wall mounting and adjustment.
- Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
- Opening "From the opening - OUT" (180°) or "Into the opening - IN" Inverso model (95°) with the preservation of coplanarity (a single plane with the wall).
- Maximum dimensions: width up to 90 cm, height up to 240 cm.




  • Opening types
  • Door kit
  • Technical information

  • Preparation of openings
Swing door
Swing door
Double doors
Double doors
Door
Door " under the ceiling"
Door with transom
Door with transom
PIVOT door
PIVOT door
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
    - finish floor or floor topping with a mark of finish floor level;
    - the floor should be smooth, without weirs.
