Sliding interior partition on the STRATUS mechanism

Minimal cost in collection

Construction STRATUS-SLIM, canvas model Space, 80x210 cm, safe Trasparente glass, aluminum frame of the canvas and a hidden rail in Chrome Matt finish with ceiling mounting.
Options for finishing the canvas
TRANSPARENT & SATIN GLASS. Transparent and frosted tempered safety glass.
  • GT01 Trasparente

  • GT02 Trasparente Grafite

  • GT03 Trasparente Bronzo

  • GT05 Trasparente Sole

  • GS04 Satinato Bianco

  • GS08 Satinato Grafite

  • GS09 Satinato Bronzo

Options for finishing the track and the end edge of the canvas
ALUMINIUM. Finishing of aluminum surfaces.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Model range

- A glass canvas on an elegant aluminum frame. The frame of the canvas is made of solid cast aluminum profile: side 16 mm, upper and lower 44 mm.
- Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.
-Unique sliding system STRATUS – Patent UNION: all mechanisms (carriages and Soft Closing systems) - Made in Italy; monoblock rail, soft silent movement, smooth closing closers, framing with a system of super-strong neodymium magnets.
- Versatility of elements. The same tracks are used for hidden and visible mounting structures.
- Thanks to the use of aluminum trim for structures with a visible track, a sustained minimalistic interior design is provided. Removable platband makes it possible to service the mechanism during operation.
- There is no mechanical connection between the structural elements. Fastening is carried out using profiled hooks and neodymium super-strong magnets.
- Sliding system – in the finishing of the web profile. All aluminum guides and visible structural elements can be presented in 8 standard aluminum colors.
- Maximum dimensions: width up to 120 cm, height up to 300 cm.

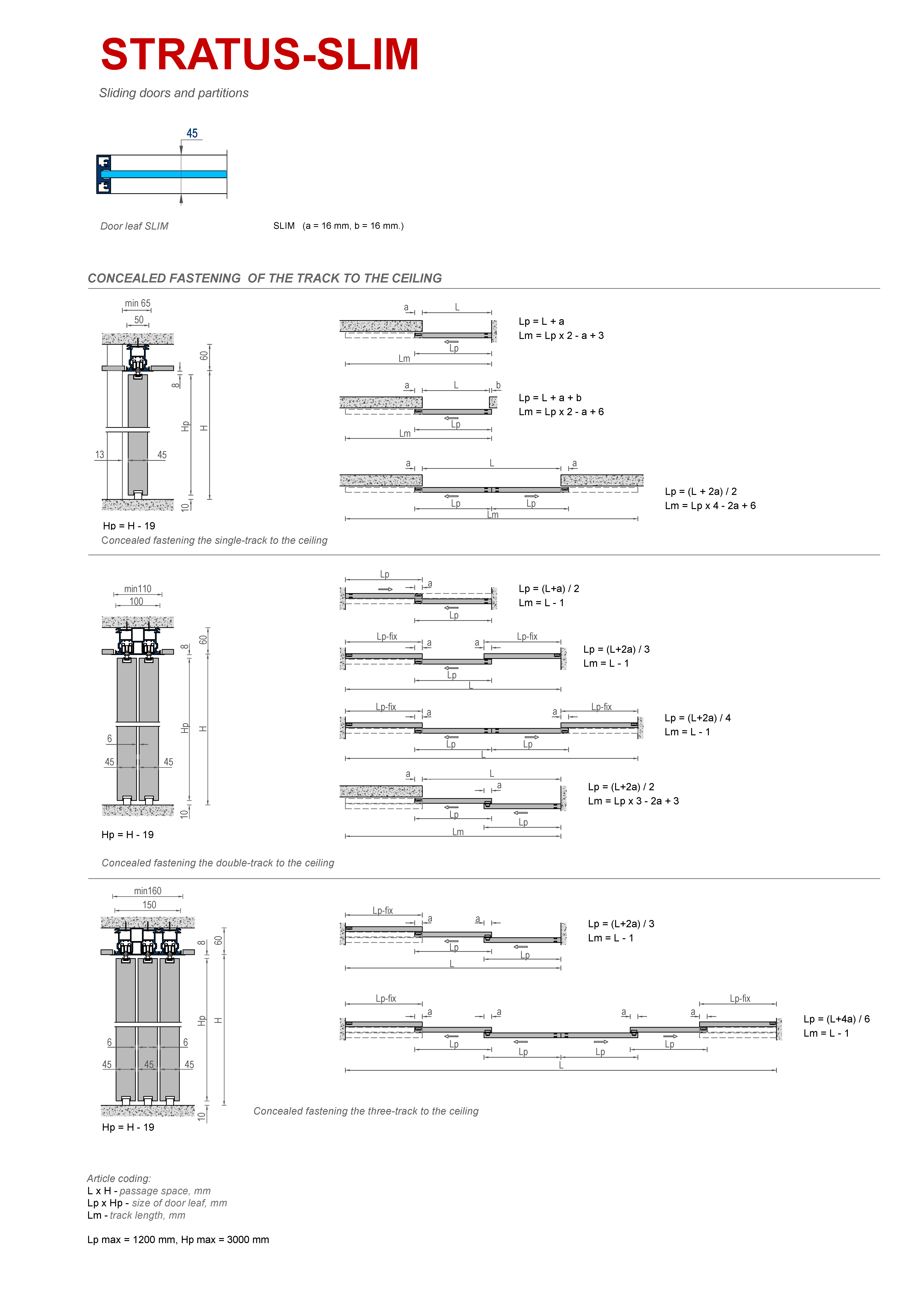

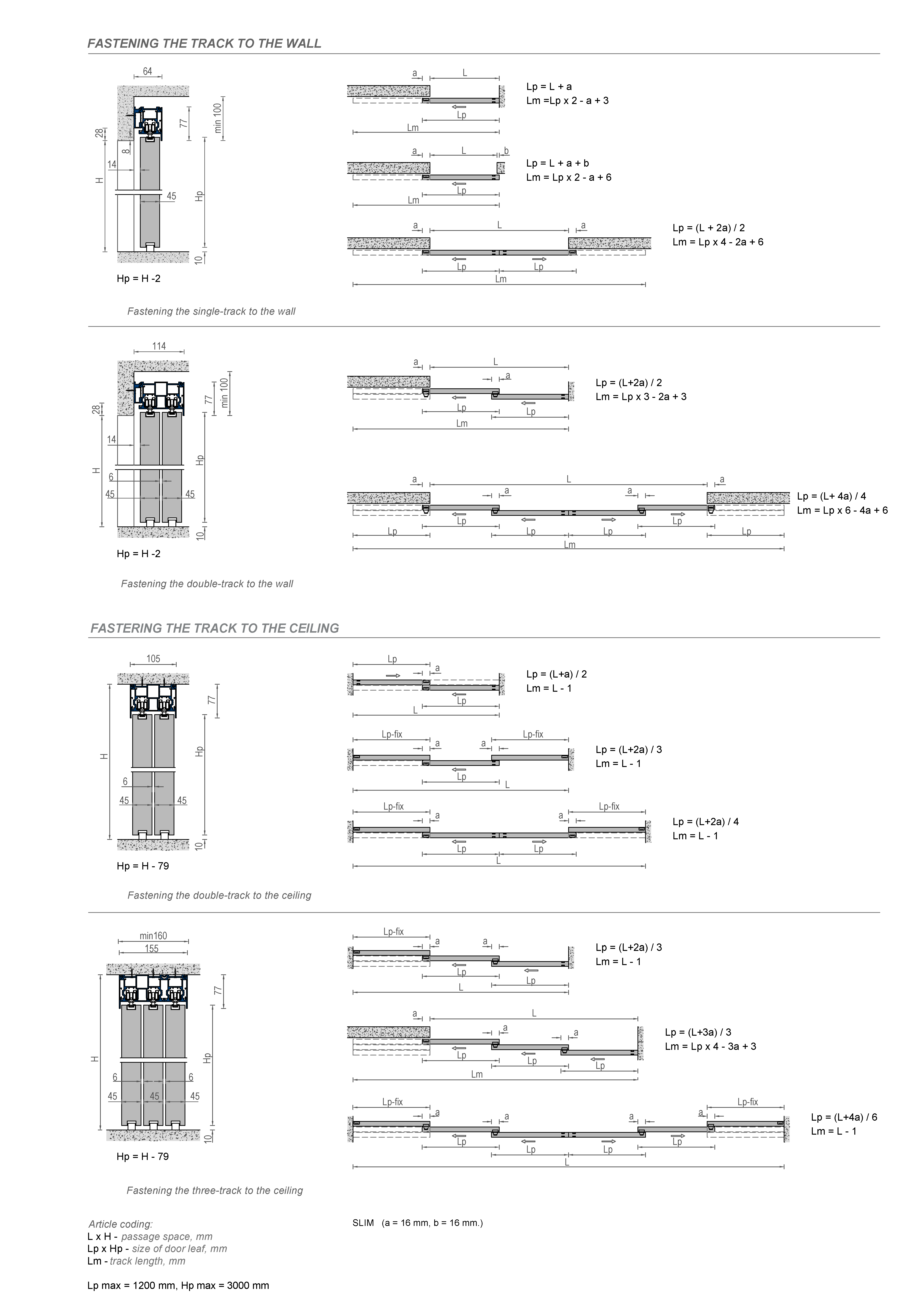

  • Technical information
