Sliding interior partition on the STRATUS mechanism

Minimal cost in collection

Construction STRATUS–SLIM, canvas model Space, 80x210 cm, safe Trasparente glass, aluminum frame of the canvas and a hidden rail in Chrome Matt finish with ceiling mounting.
Options for finishing the canvas
TRANSPARENT & SATIN GLASS. Transparent and frosted tempered safety glass.
  • GT01 Trasparente

  • GT02 Trasparente Grafite

  • GT03 Trasparente Bronzo

  • GS04 Satinato Bianco

Options for finishing the track and the end edge of the canvas
ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

Model range

– A glass canvas on an elegant aluminum frame. The frame of the canvas is made of solid aluminum profile: side 16 mm, upper and lower 44 mm.
– Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.
– Unique sliding system STRATUS – Patent UNION: all mechanisms (carriages and Soft Closing systems) – Made in Italy; rail–monoblok, soft silent movement, smooth closing closers, framing with a system of super–strong neodymium magnets.
– Versatility of elements. The same tracks are used for hidden and visible mounting structures.
– Thanks to the use of an aluminum platband for structures with a visible track,tsya sustained minimalistic interior design. Removable platband makes it possible to service the mechanism during operation.
– There is no mechanical connection between the structural elements. Fastening is carried out using profiled hooks and neodymium super–strong magnets.
– Sliding system – in the finishing of the canvas profile. All aluminum guides and visible structural elements can be presented in 8 standard aluminum colors.
– Maximum dimensions: width up to 120 cm, height up to 300 cm.

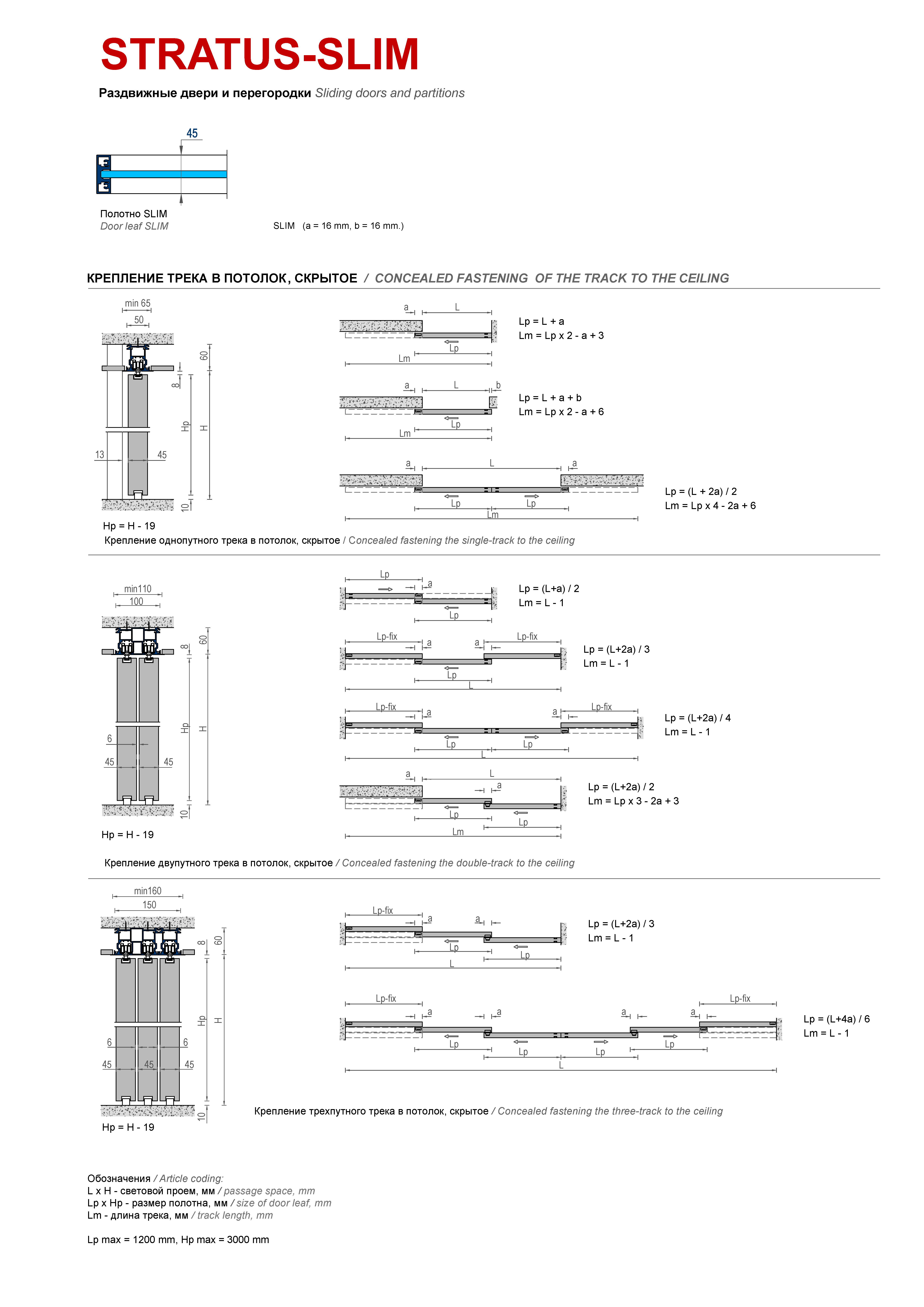

  • Technical information
