Door on a hidden door frame, glass

Minimal cost in collection

LAGO–60, GLASS; INVISIBLE.
Price per set: 60 mm thick canvas with safety glass in Bianco color, conditional size 60/70/80/90x200/210 cm, "hidden" door frame and aluminum frame of the canvas in the finish – Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.
Finishes
GLASS LACCATO. Glossy glass, painted / branded factory colors.
  • G01 Bianco

  • G02 Bianco Night

  • G03 Avorio

  • G06 Grigio Seta

  • G11 Tortora

  • G12 Sabbia

  • G13 Rocca

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

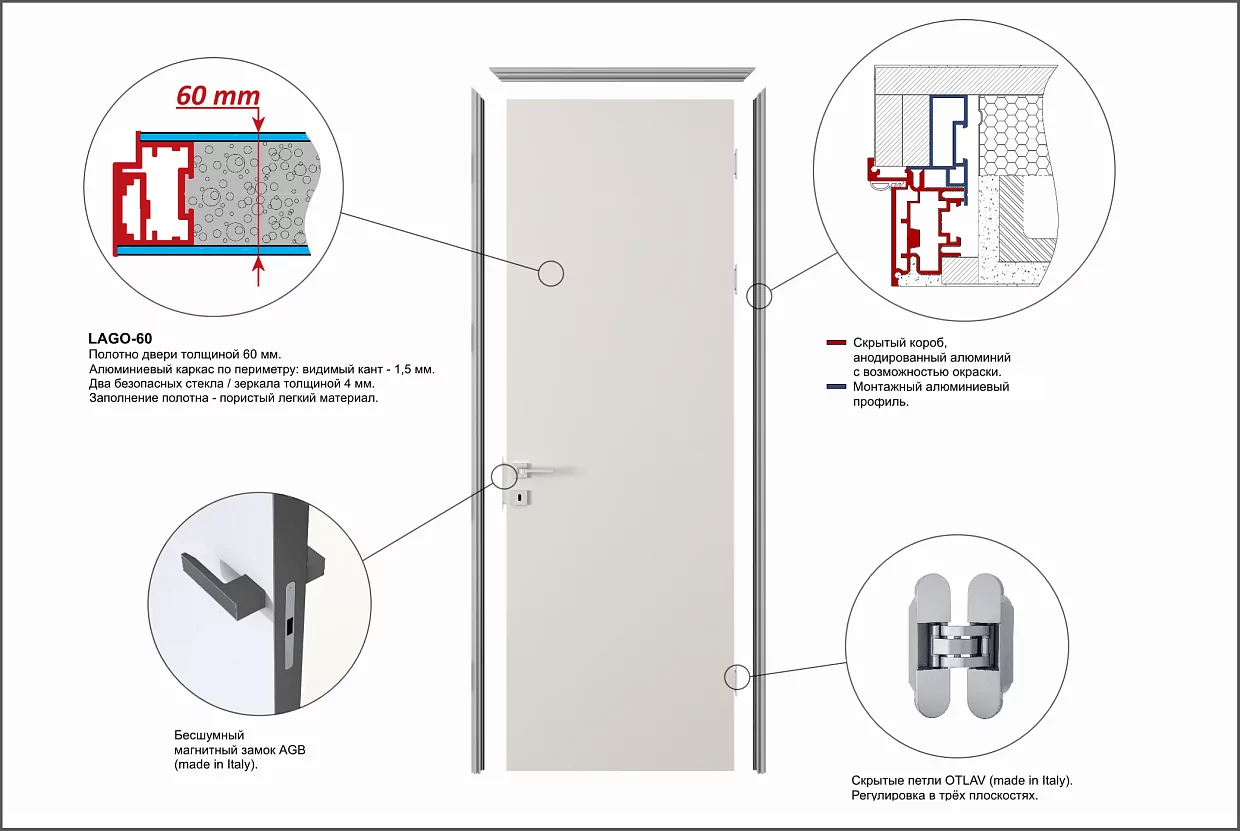

– The door leaf is 60 mm thick. Aluminum frame around the perimeter: visible aluminum edging – 1.5 mm.
– Two safety glasses: GLASS LACCATO – glossy painted glass.
– Hollow core filling: porous lightweight material – additional rigidity of the structure.
– Aluminum door frame (patent UNION), cannot be deformed by humidity and temperature changes. Increased structural rigidity.
– The base finish of the door frame is anodized aluminum, Chrome Matt color. It can be used as a finish as well as a base for painting, allowing to adjust the color to the wall.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– The hidden door–frame is reversible, heat–treated aluminum. Additional structural strength is designed for heavy doors.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Noise–free magnetic lock AGB (made in Italy).
– DEVENTER sealer (made in Germany), super elastic, wear–resistant.
– Calipers (made in Italy), for wall mounting and adjustment.
– Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°) while maintaining coplanarity (a single plane with the wall).
– Maximum sizes: width till 90 сm, height till 300 сm.

  • Types of doorways
  • Door kit
  • Technical information

  • Aperture preparation
Swing door
Swing door
Double doors
Double doors
Door
Door " under the ceiling"
Door with transom
Door with transom
PIVOT door
PIVOT door
Door with mirror
Door with mirror
  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
