The door is on an aluminum door frame, glass.

Minimal cost in collection

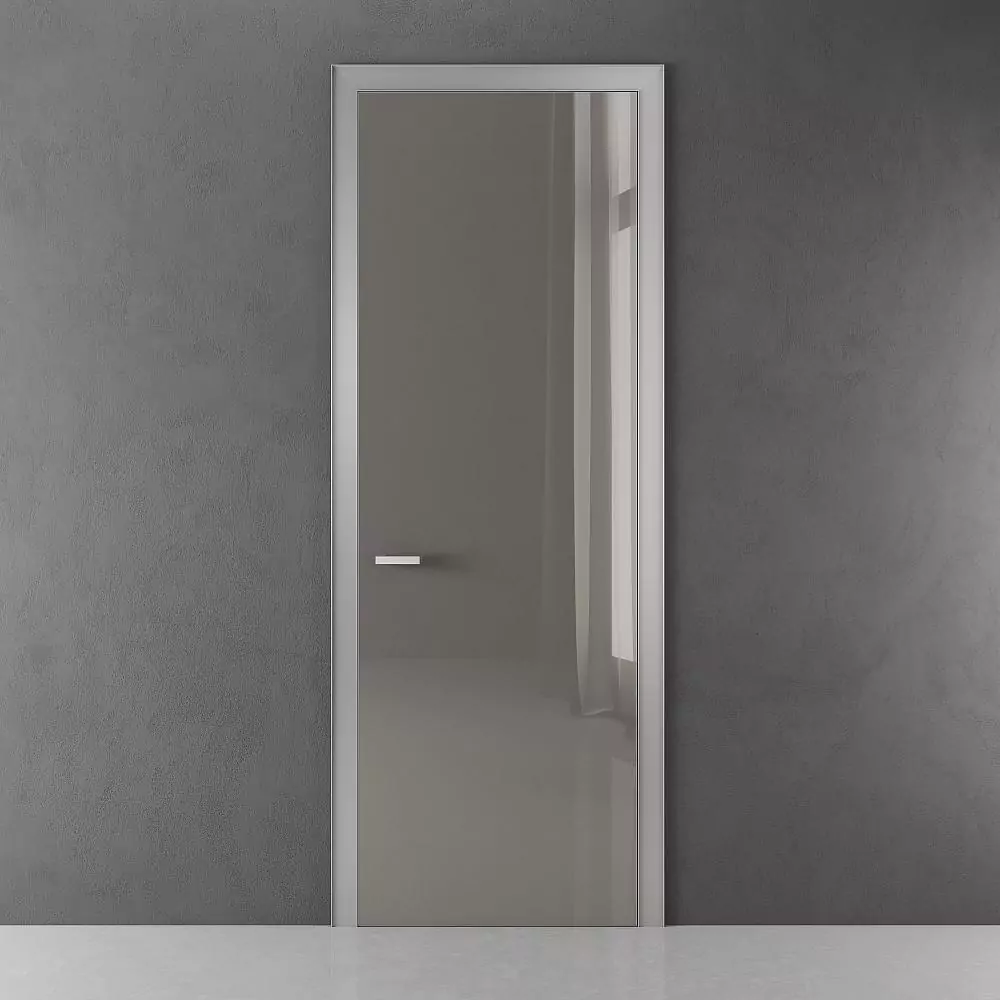

LAGO–60, GLASS; PLANAR (without insert).
Price per set: 60 mm thick canvas with safety glass in Bianco color, conditional size 60/70/80/90x200/210 cm, aluminum door frame and aluminum frame of the canvas in the finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
Finishes
GLASS LACCATO. Glossy glass, painted / branded factory colors.
  • G01 Bianco

  • G02 Bianco Night

  • G03 Avorio

  • G06 Grigio Seta

  • G11 Tortora

  • G12 Sabbia

  • G13 Rocca

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

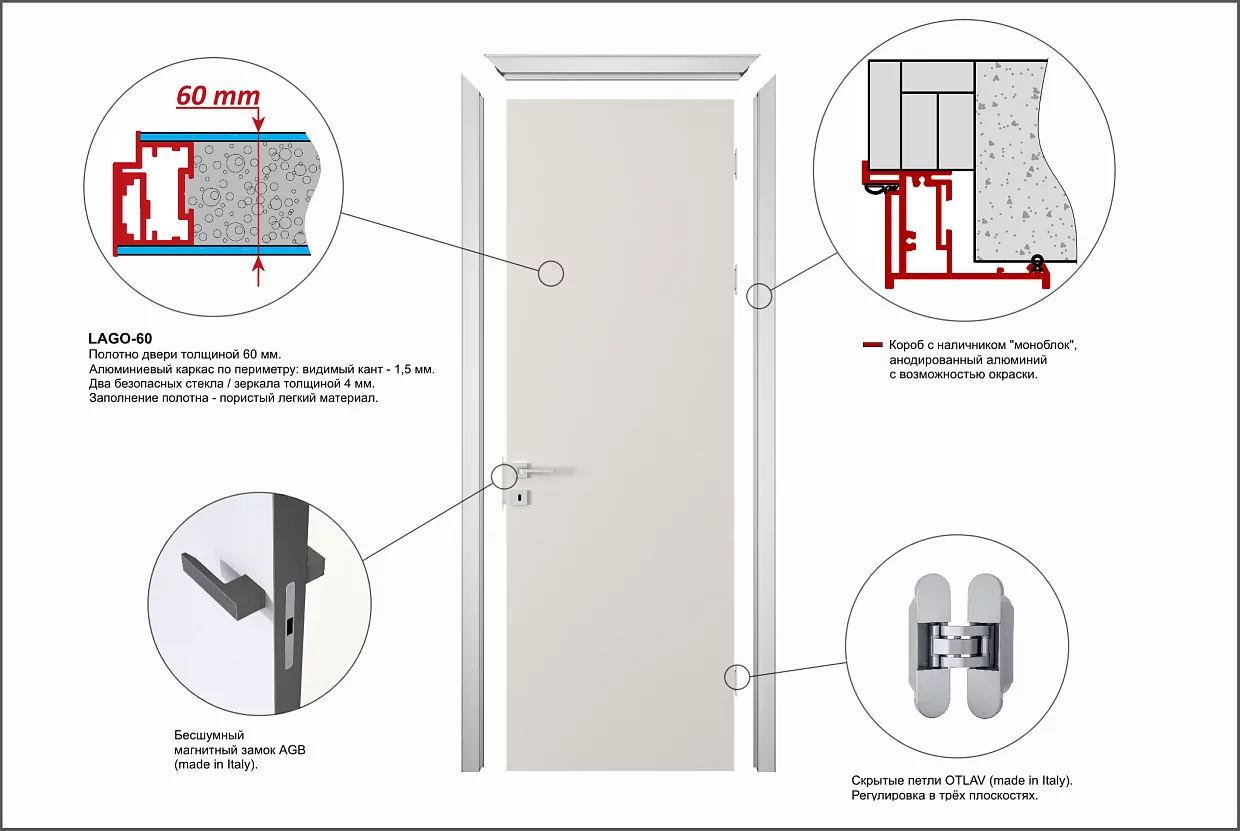

– The door leaf is 60 mm thick. Aluminum frame around the perimeter: visible aluminum edging – 1.5 mm.
– Two safety glasses: GLASS LACCATO – glossy painted glass.
– Hollow core filling: porous lightweight material – additional rigidity of the structure.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when changing humidity and temperature. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). The design of the door frame has a dobora (option).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum edge and the handle can beb in any of the finishes offered by the manufacturer.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Noise–free magnetic lock AGB (made in Italy).
– DEVENTER sealer (made in Germany), super elastic, wear–resistant.
– A special hidden sealer (made in Germany) between the casing and the wall, levels the irregularities of the st

  • Door kit
  • Technical information

  • Aperture preparation
  • Video instruction

  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
