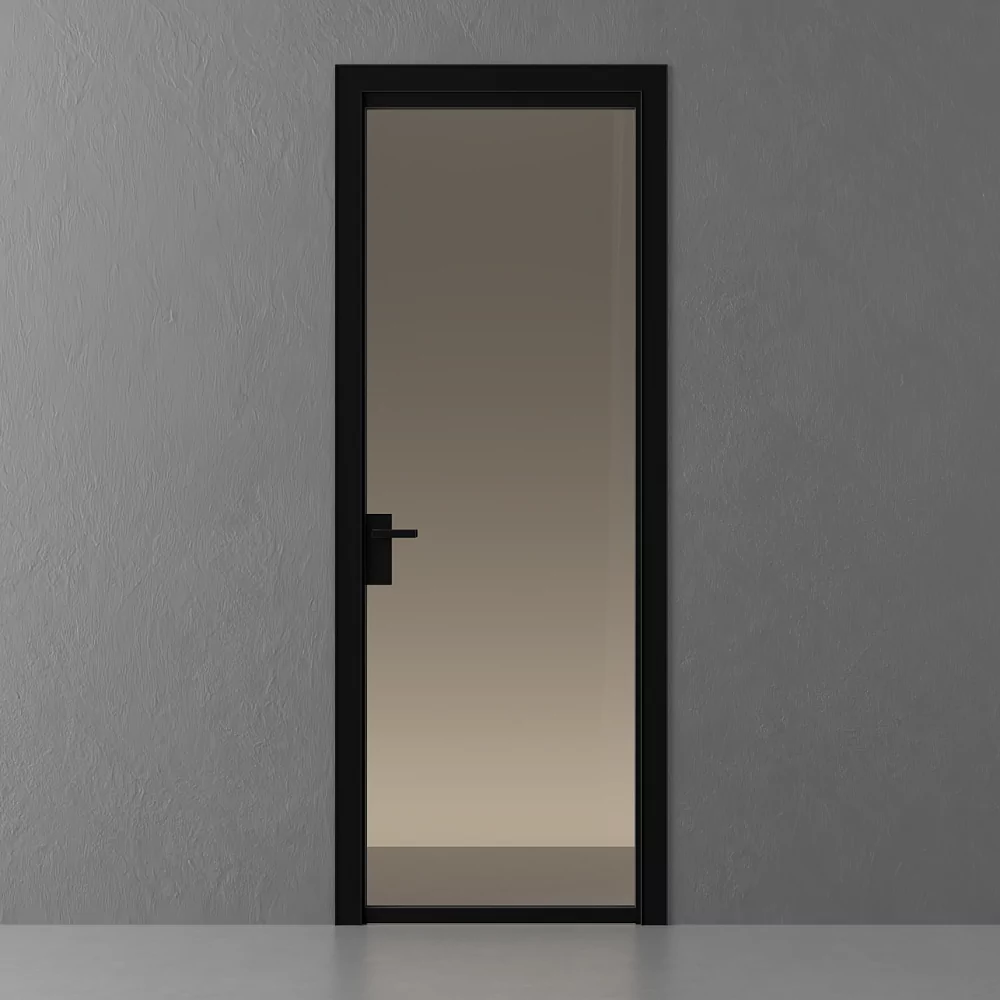

The door is on an aluminum door frame, glass.

Minimal cost in collection

SLIM, Space, TRANSPARENT GLASS; PLANAR (without insert).
Price per set: canvas with a safe translucent Trasparente glass, Space model, conditional size 60/70/80/90x200/210 cm, aluminum door frame and aluminum frame of the canvas in the finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
Finishes
TRANSPARENT & SATIN GLASS. Transparent and frosted tempered safety glass.
  • GT01 Trasparente

  • GT02 Trasparente Grafite

  • GT03 Trasparente Bronzo

  • GT05 Trasparente Sole

  • GS04 Satinato Bianco

  • GS08 Satinato Grafite

  • GS09 Satinato Bronzo

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

Model range

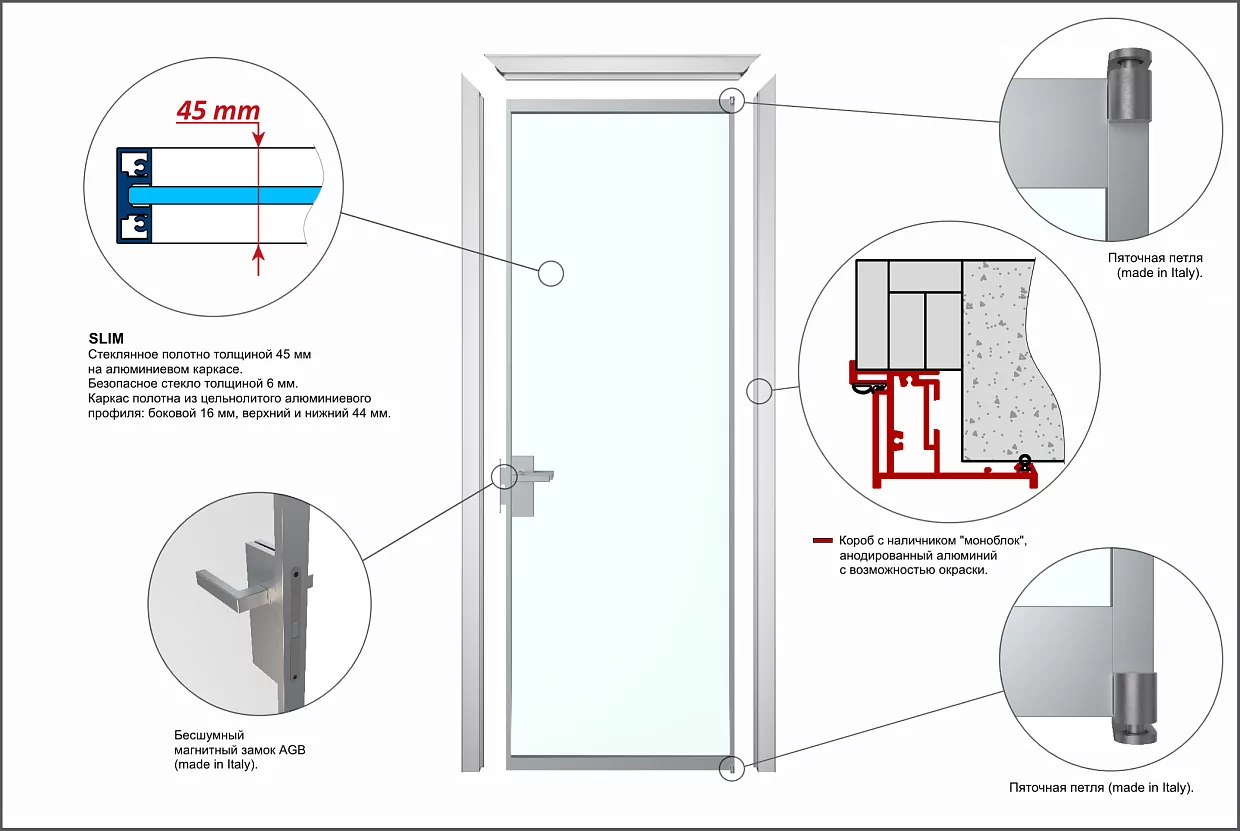

– A glass canvas on an elegant aluminum frame. The frame of the canvas is made of solid aluminum profile: side 16 mm, upper and lower 44 mm.
– Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). The design of the door frame has a dobora (option).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum frame of the canvas and the handle can be in any of the finishes offered by the manufacturer.
– Heel loops (made in Italy).
– Noise–free magnetic lock AGB (made in Italy).
– Sealer DEVENTER (made in Germany), super elastic, wear–resistant.
– A special hidden sealer (made in Germany) between the casing and the wall, levels the irregularities of the wall, ensuring an ideal fit.
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum sizes: width till 90 сm, height till 300 сm.

  • Door kit
  • Technical information

  • Aperture preparation
  • Video instruction

  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
