Interior door SLIM. Aluminum profile, glass.
Minimal cost in collection
Price per set: canvas with safe translucent Trasparente glass, Space model, conditional size 60/70/80/90x200/210 cm, "hidden" box and aluminum frame of the canvas in the finish - Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.

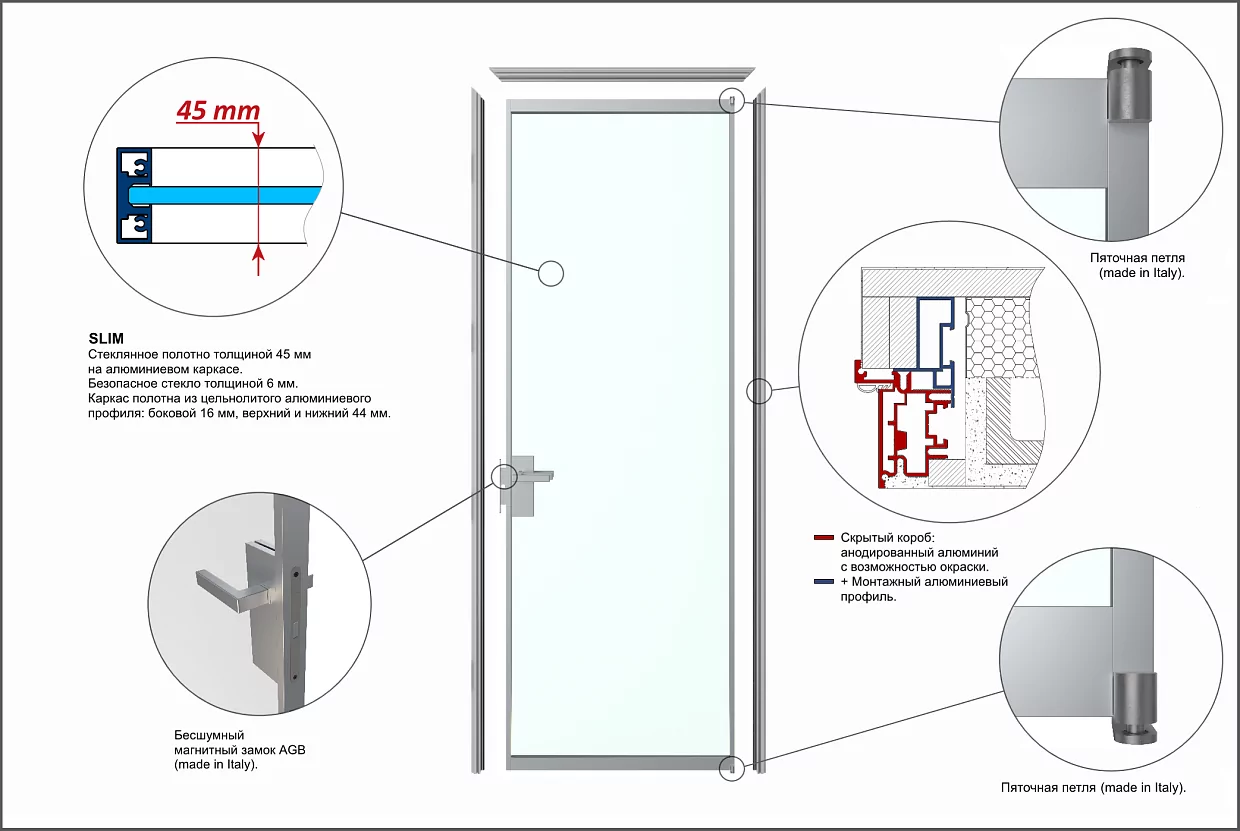

- A glass canvas on an elegant aluminum frame. The frame of the canvas is made of solid aluminum profile: side 16 mm, upper and lower 44 mm.
- Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.

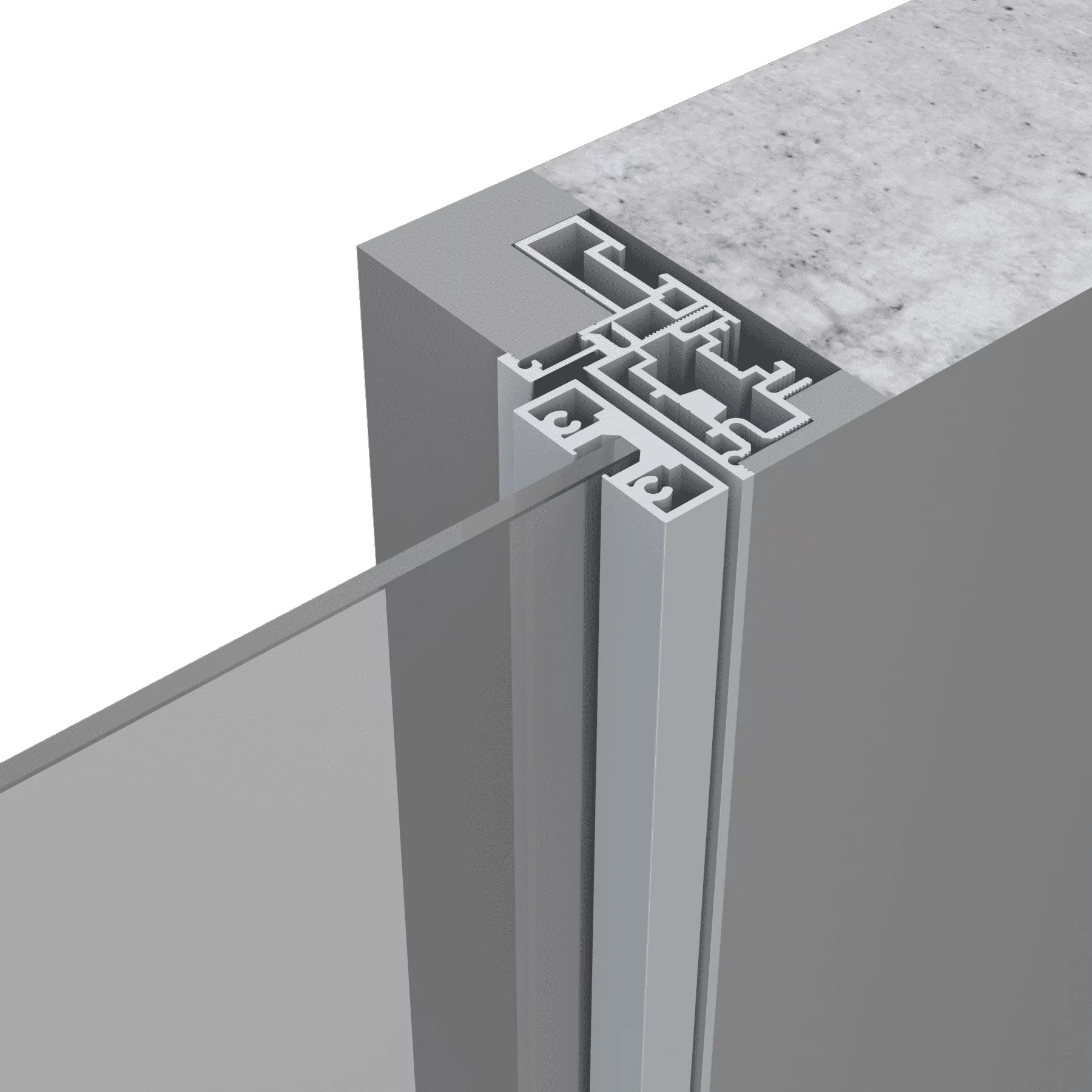

- Aluminum box (patent UNION), is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. It can be both a finishing finish and a base for painting. During installation, it is possible to paint in any color together with the wall.
- The box, the aluminum frame of the canvas and the handle can be in any of the finishes offered by the manufacturer.

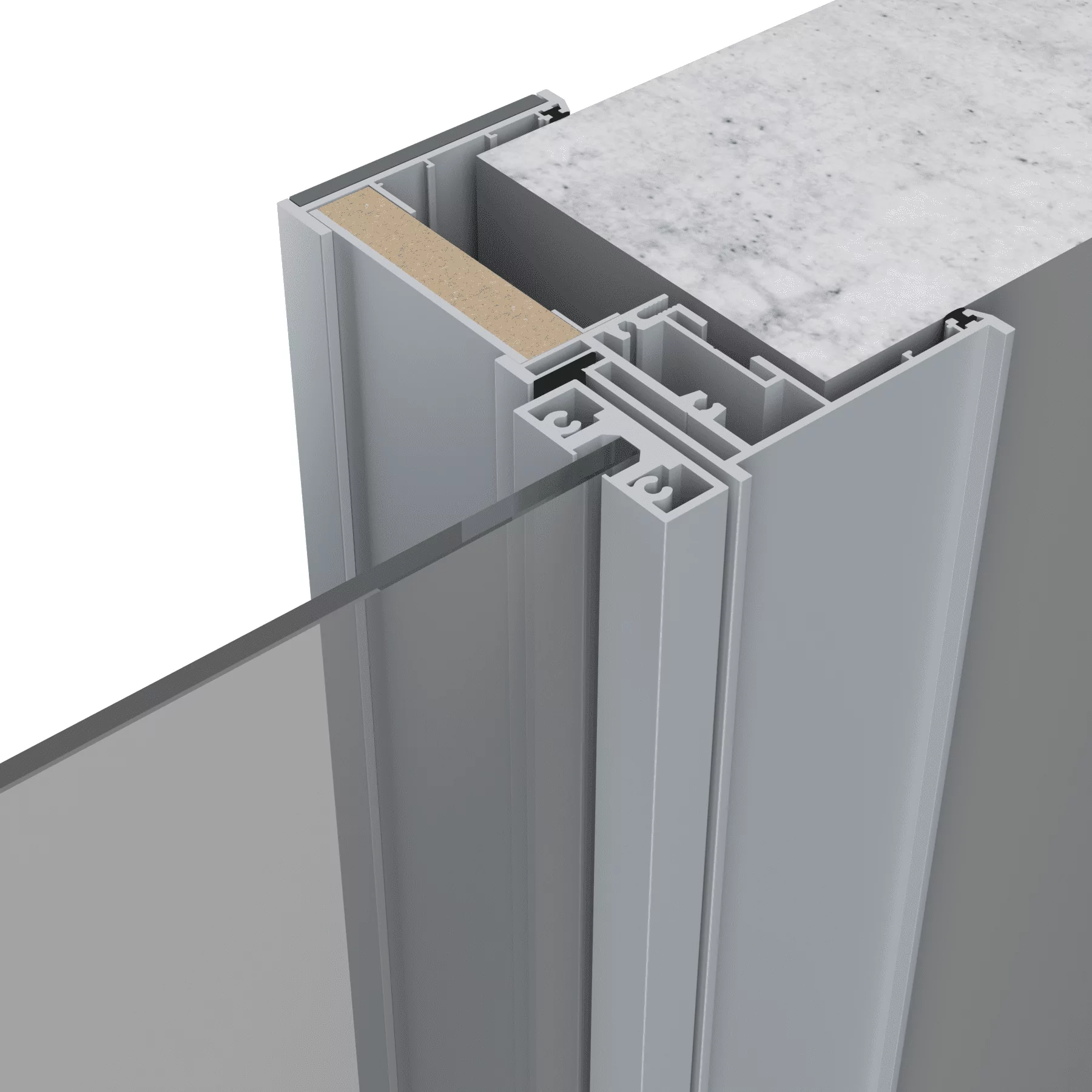

- The false box is reversible, hardened aluminum. Additional structural strength is designed for heavy doors.
- Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
- Calipers (made in Italy), for wall mounting and adjustment.
- Heel loops (made in Italy).
- Silent magnetic lock AGB (made in Italy).
- Sealer DEVENTER (made in Germany), super elastic, wear-resistant.
- Opening "From the opening - OUT" (180°) or "Into the opening - IN" Inverso model (95°).
- Possibility of installation under the ceiling without an upper jumper.
- Maximum dimensions: width up to 90 cm, height up to 300 cm.
- Safety glass 6 mm thick: TRANSPARENT GLASS – translucent glass.
- Aluminum box (patent UNION), is not subject to deformation when humidity and temperature change. Increased rigidity of the structure.
- The base finish of the box is anodized aluminum, Chrome Matt color. It can be both a finishing finish and a base for painting. During installation, it is possible to paint in any color together with the wall.
- The box, the aluminum frame of the canvas and the handle can be in any of the finishes offered by the manufacturer.
- The false box is reversible, hardened aluminum. Additional structural strength is designed for heavy doors.
- Reinforcing mesh for plastering, on two sides, a guarantee against cracking of plaster, with a roller for rolling up the mesh.
- Calipers (made in Italy), for wall mounting and adjustment.
- Heel loops (made in Italy).
- Silent magnetic lock AGB (made in Italy).
- Sealer DEVENTER (made in Germany), super elastic, wear-resistant.
- Opening "From the opening - OUT" (180°) or "Into the opening - IN" Inverso model (95°).
- Possibility of installation under the ceiling without an upper jumper.
- Maximum dimensions: width up to 90 cm, height up to 300 cm.

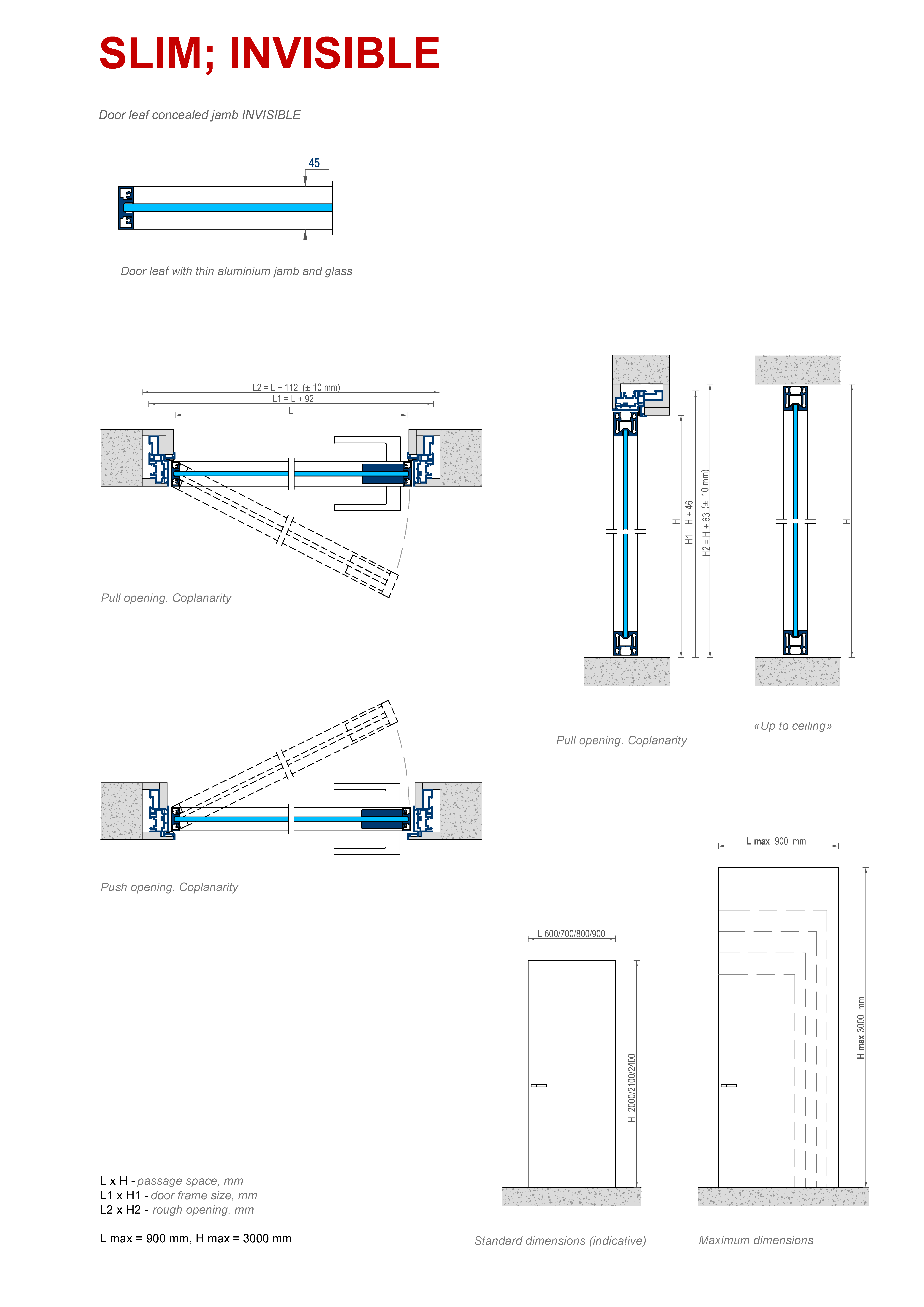

- Opening types
- Door kit
Technical information
- Preparation of openings
.jpg)
1. Prepare the necessary dimensions of doorway L2/H2 (width, height).
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
- finish floor or floor topping with a mark of finish floor level;
- the floor should be smooth, without weirs.
Attention! If you prepare the doorways for standard door sizes, you will have a discount.
2. The walls should be plastered by a vertical level (without deviations). They should be prepared for finishing work.
3. Floor. The door is installed on a level of the finish floor;
- finish floor or floor topping with a mark of finish floor level;
- the floor should be smooth, without weirs.
